Turrets: Hunting
Functions (Abbreviations)
DT (Double-Turn)
MT (Multi-Turn)
ST (Single-Turn)
cw (clockwise)
ccw (counter clockwise)
0.1 mrad = 1 cm / 100 m
BDC = Bullet Drop Compensation (BDC)
The BDC enables quick adjustment of the reticle position to “stay on target” at various distances. With clearly visible markings and numbers, the reticle can be easily adjusted with a single movement to ensure accuracy even at long range.
CT = (Capped Turret)
CT features the possibility to install a cap on top of the turret via a thread in order to avoid accidental adjustments.
LT = (Locking Turret)
BDC II and BDC II-B models feature a Mode Lever that locks or unlocks the turret. When the lever points toward the muzzle, the turret is locked. Rotating the lever toward the magnification ring unlocks the turret.
SZC = Sub-Zero Clicks
Sub-Zero Clicks are clicks below the engraved “0.” They allow quick compensation for air pressure changes or for the use of suppressors/night-vision devices – without needing to re-zero the turret.

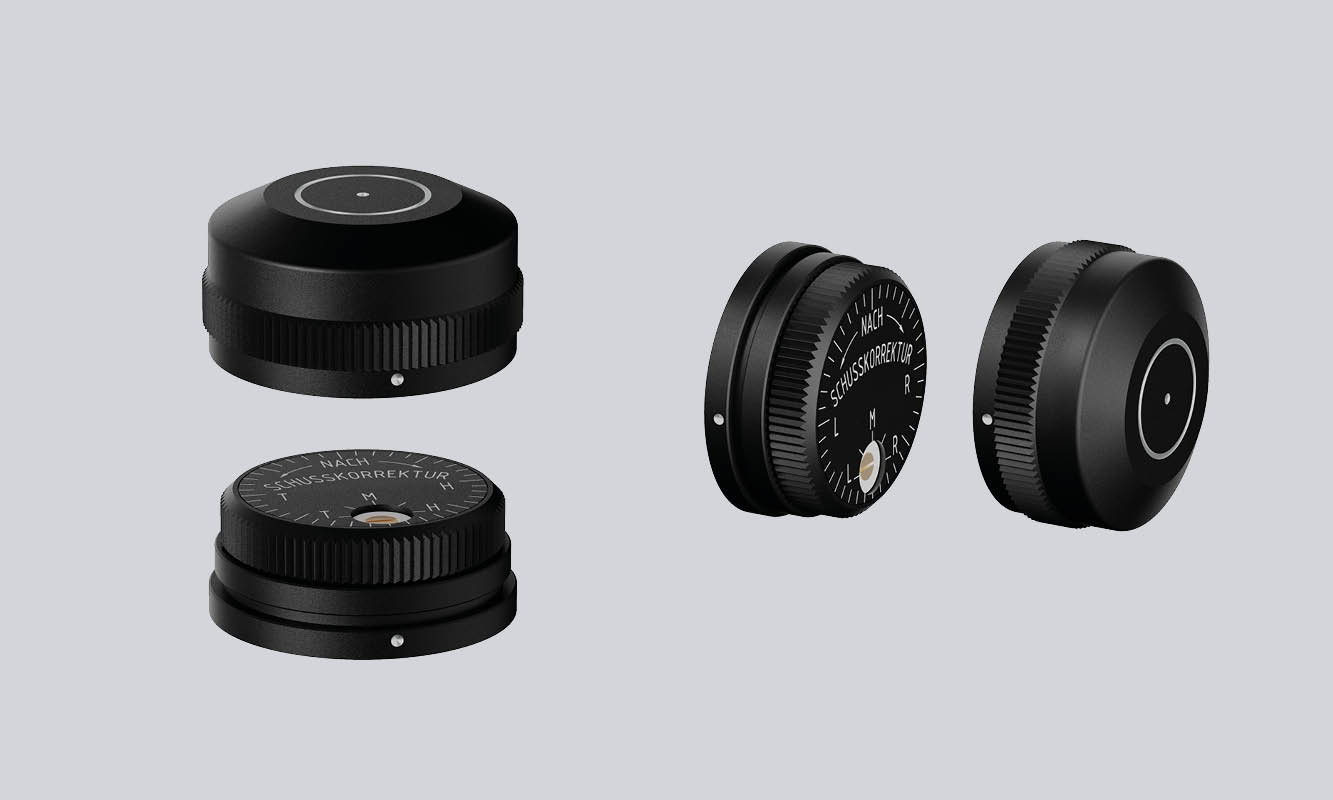

Klassik CT (ELEVATION) | Klassik CT (WINDAGE)
Capped Klassik turret adjustments for elevation and windage
This simple and precise system has proven itself for many users around the world for years. The Klassik turret adjustment provides a quick visual reference of the reticle position and offers a consistently large adjustment range in both elevation and windage, ensuring perfect zeroing.
Available for: Klassik-Series

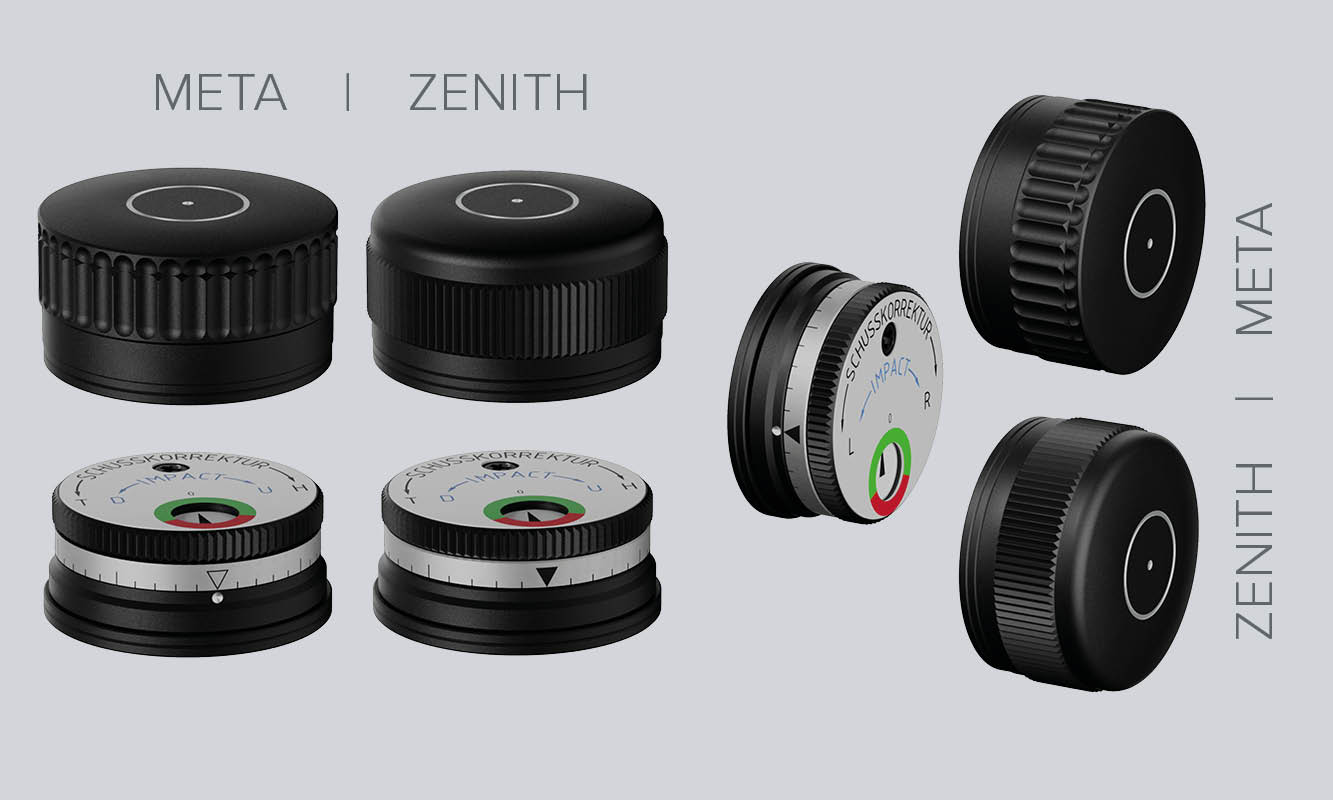

Posicon CT (ELEVATION) | Posicon CT (WINDAGE)
Posicon turret adjustments for elevation and windage (CT)
The Posicon turret adjustment (Position Control) is unique and exclusively available from Schmidt & Bender. Its color-coded system allows you to see the reticle position at a glance, preventing excessive canting of the erector system inside the riflescope tube. This adjustment system ensures simple and precise zeroing.
Available for: Zenith-Series, 1-8x24 Exos and Exos (TMR), 3-12x54 Polar T96, and 3-18x42 Meta (2. FP)
BDC (ELEVATION) |
Klassik CT (WINDAGE)
Tool-free elevation and windage correction
The classic Bullet Drop Compensation (BDC) enables tool-free zeroing and precise shots at longer distances. The capped Klassik turret adjustment (CT) for windage is protected by a screw cap and offers a large adjustment range for reliable zeroing.
Available for: 3-12x42, 3-12x50 and 4-16x50 Klassik
BDC (ELEVATION) |
Posicon CT (WINDAGE)
Precise elevation and windage combined
The classic Bullet Drop Compensation (BDC) enables tool-free zeroing and precise shots at longer distances. Combined with the Posicon CT windage adjustment, it provides a clear visual reference and reliable control of the reticle position.
Available for: 3-12x50 Zenith

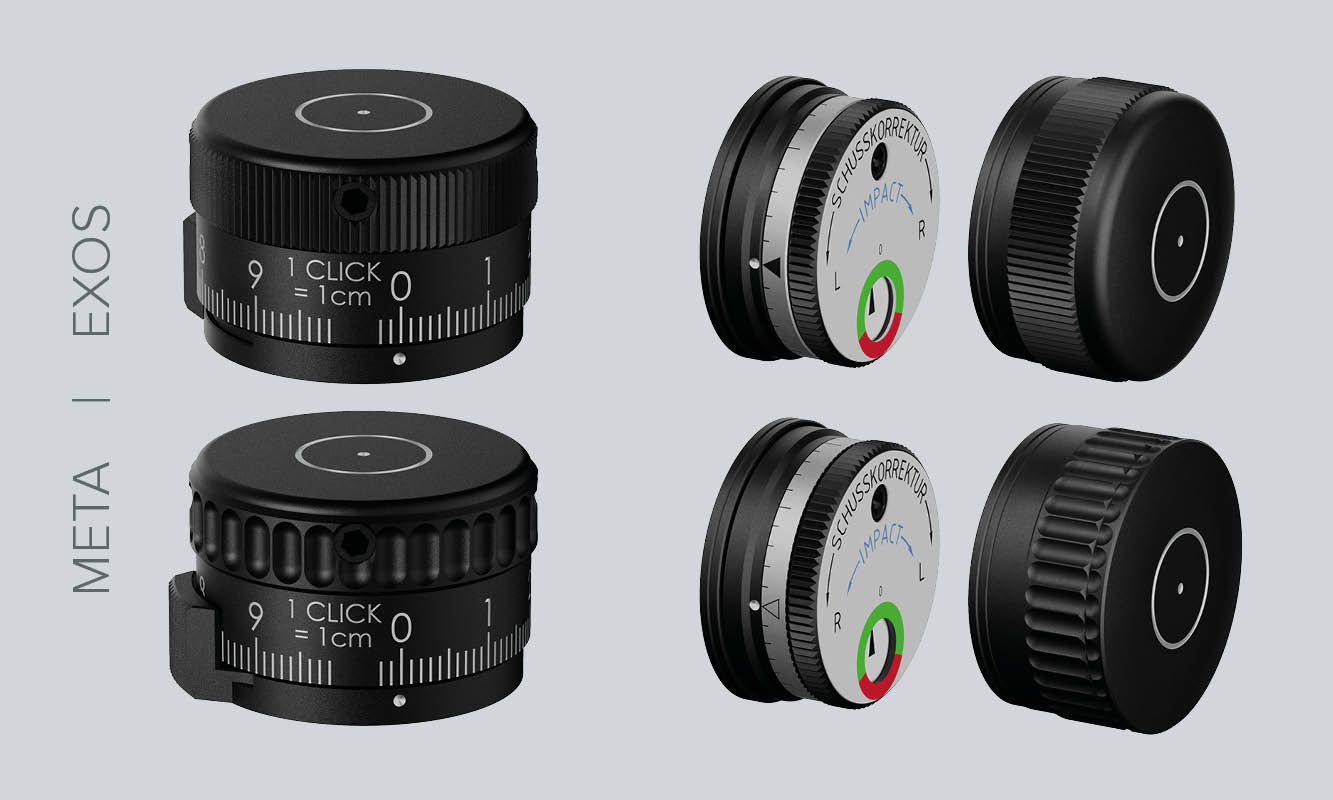

BDC II LT (ELEVATION) |
Posicon CT (WINDAGE)
Control through innovative turret systems
Robust, precise, and highly functional: The compact lockable elevation turret offers 10 mrad and enables accurate long-distance hunting shots. The windage adjustment features a capped Posicon turret. The BDC II LT operates down to –40 °C and is easy to zero without removing the turret.
Available for: 1-8x24 Exos (TMR) and 3-18x42 Meta (2. FP)

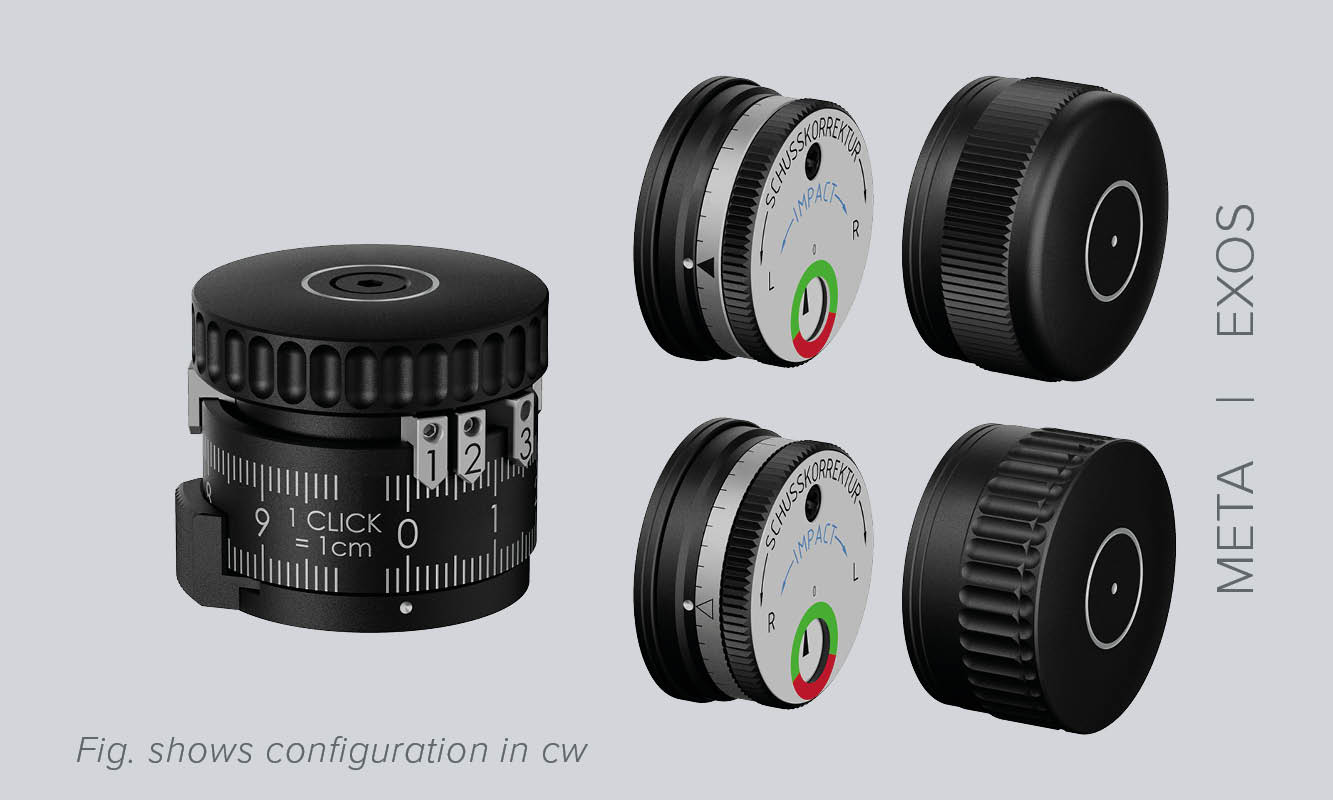

BDC II-B LT (ELEVATION) |
Posicon CT (WINDAGE)
Precise adjustment – compact, safe, reliable
The compact lockable elevation turret offers 10 mrad and it enables the shooter with six position indicators (100–600 m) to “stay on target” at various distances. The position indicators can be placed and fixed at any
desired position of the turret. The windage adjustment features a capped Posicon turret. The BDC II-B LT operates down to –40 °C and is easy to zero without removing the turret.
Available for:
3-18x42 Meta (2. FP), 1-8x24 Exos (TMR)

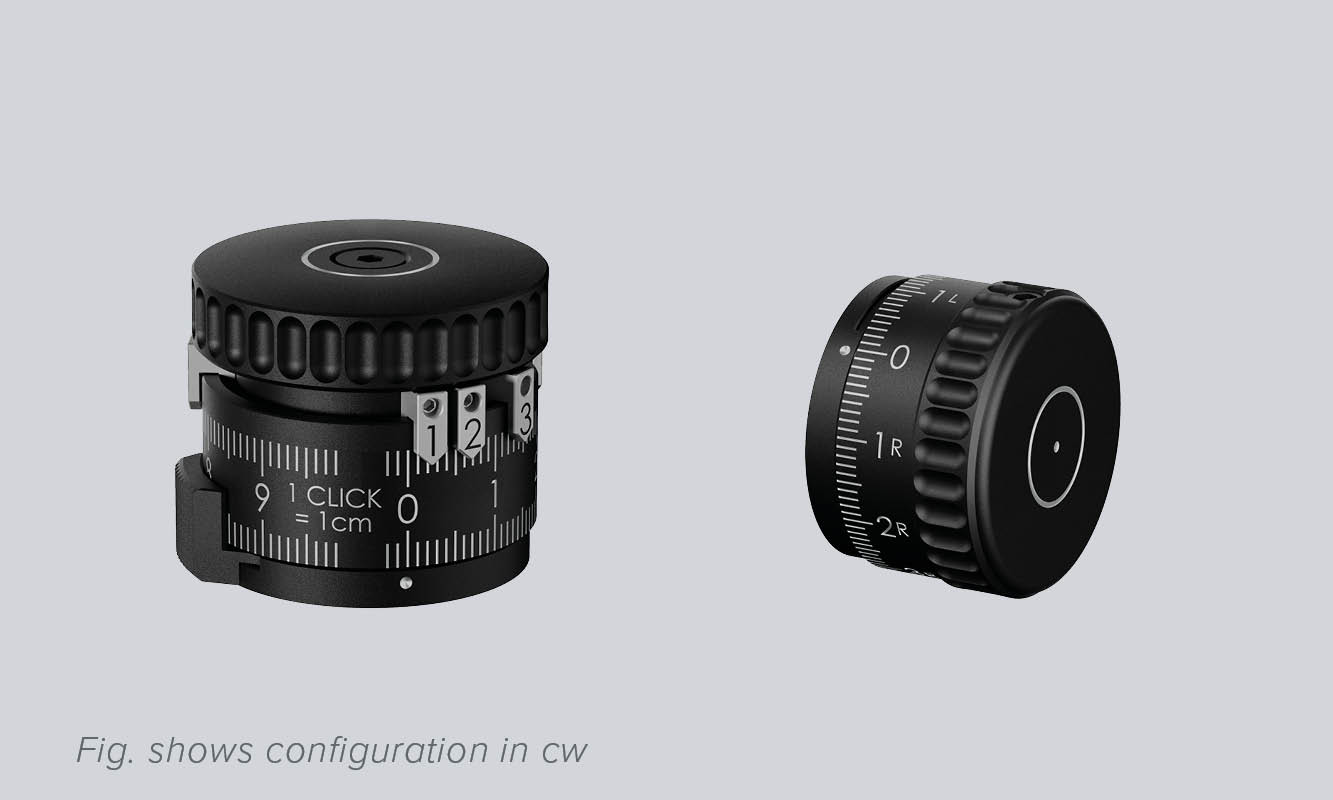

BDC II-B LT (ELEVATION) |
BDC II LT (WINDAGE)
Reliable precision – flexible and robust
The compact lockable elevation turret offers 10 mrad and it enables the shooter with six position indicators (100–600 m) to “stay on target” at various distances. The position indicators can be placed and fixed at any desired position of the turret. The windage turret also features a locking function and enables fast wind corrections. Both turrets operate down to –40 °C and can be zeroed easily without removing the turret.
Available for: 3-18x42 Meta (2. FP)
ST12 LT (ELEVATION) |
ST ZC LT (WINDAGE)
Precise control in every situation
The ultra low profile turret with 12 mrad adjustment range is extremely compact and enables highly precise long-range hunting shots. The elevation turret features locking function, while the windage turret includes Zero Click – providing a harder click at “0” – and a locking function. Designed for extreme conditions, it is easy to zero without removing the turret.
Available for: 3-18x42 Meta (1. FP)

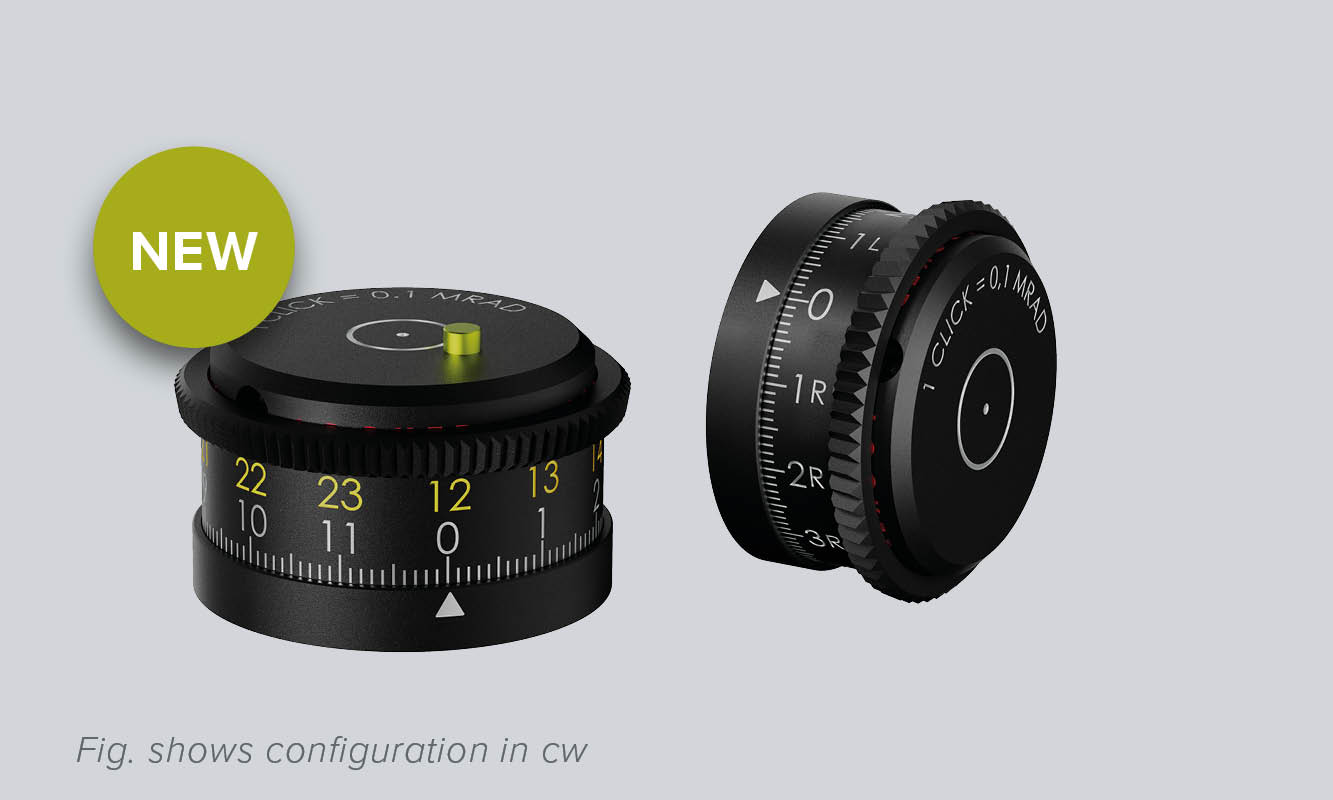

DT23 LT (ELEVATION) |
ST ZC LT (WINDAGE)
Control in any aspect – precise and intuitive
The Double-Turn turret with 23 mrad features a visual and tactile indicator for the second revolution, enabling precise long-range shots. The elevation as well as the windage adjustment have a locking function, while the windage turret additionally features a Zero Click (ZC). Both turrets can be zeroed easily without removing the turret.
Available for: 3-18x42 Meta (1. FP)
