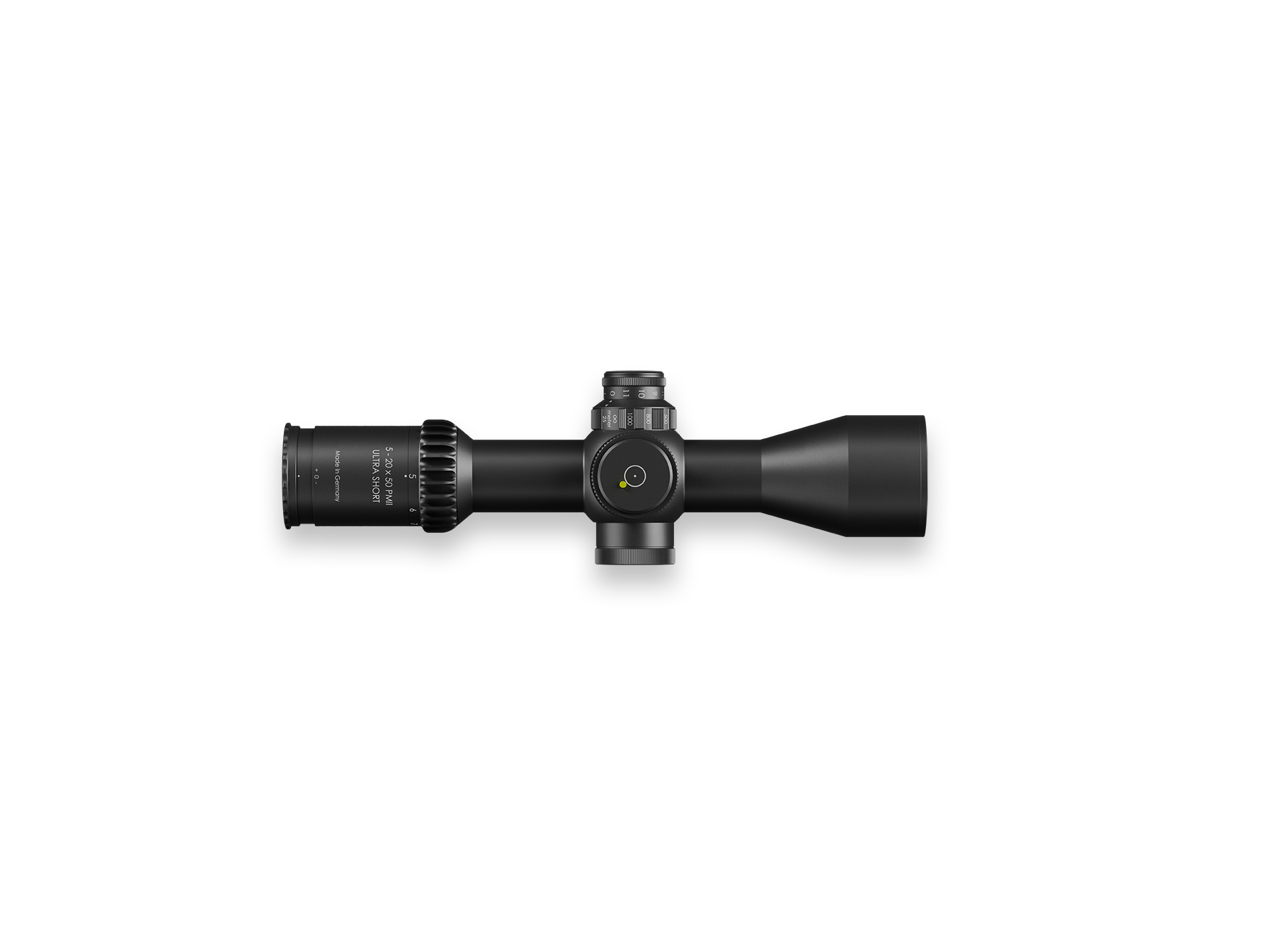

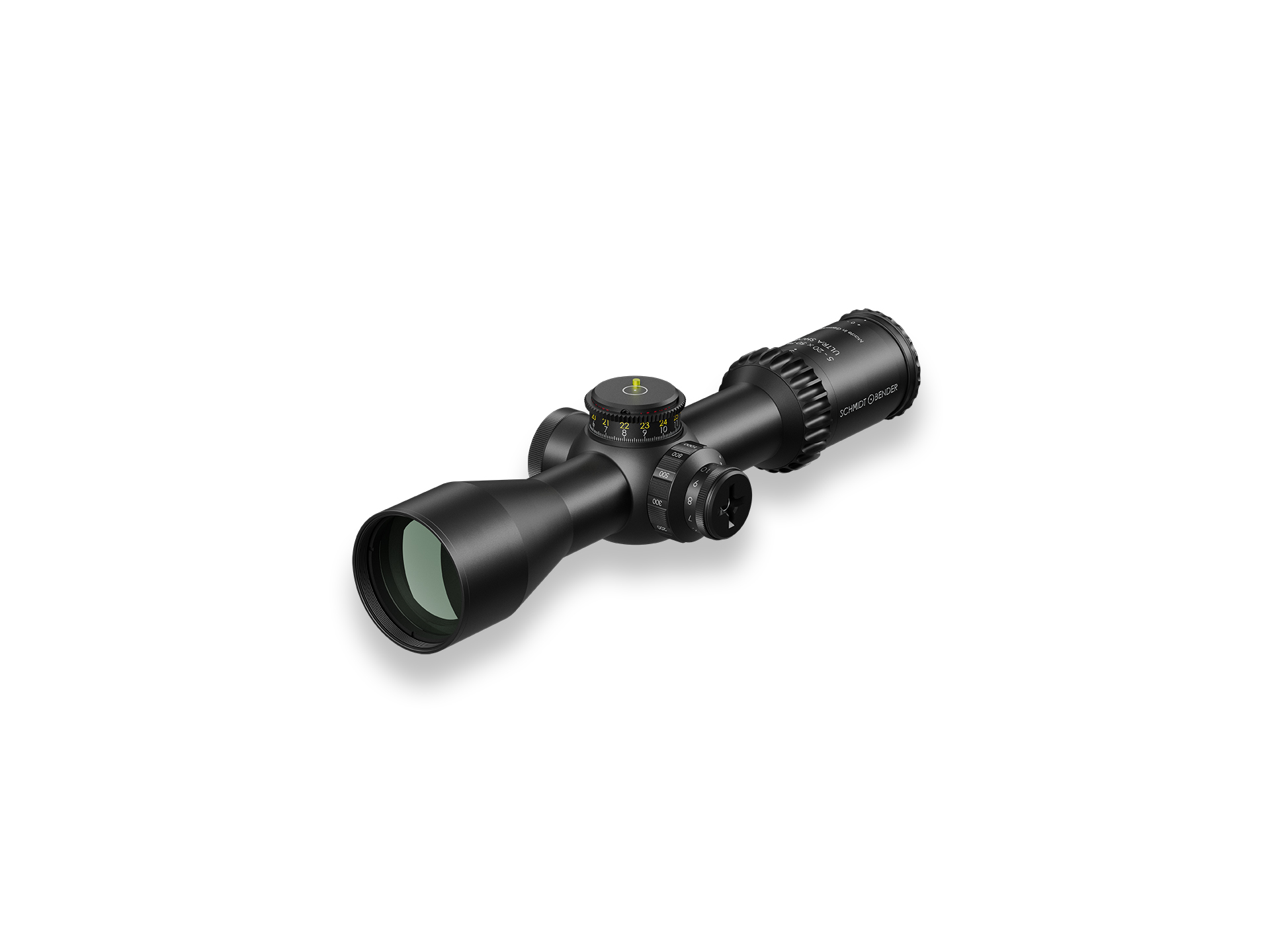

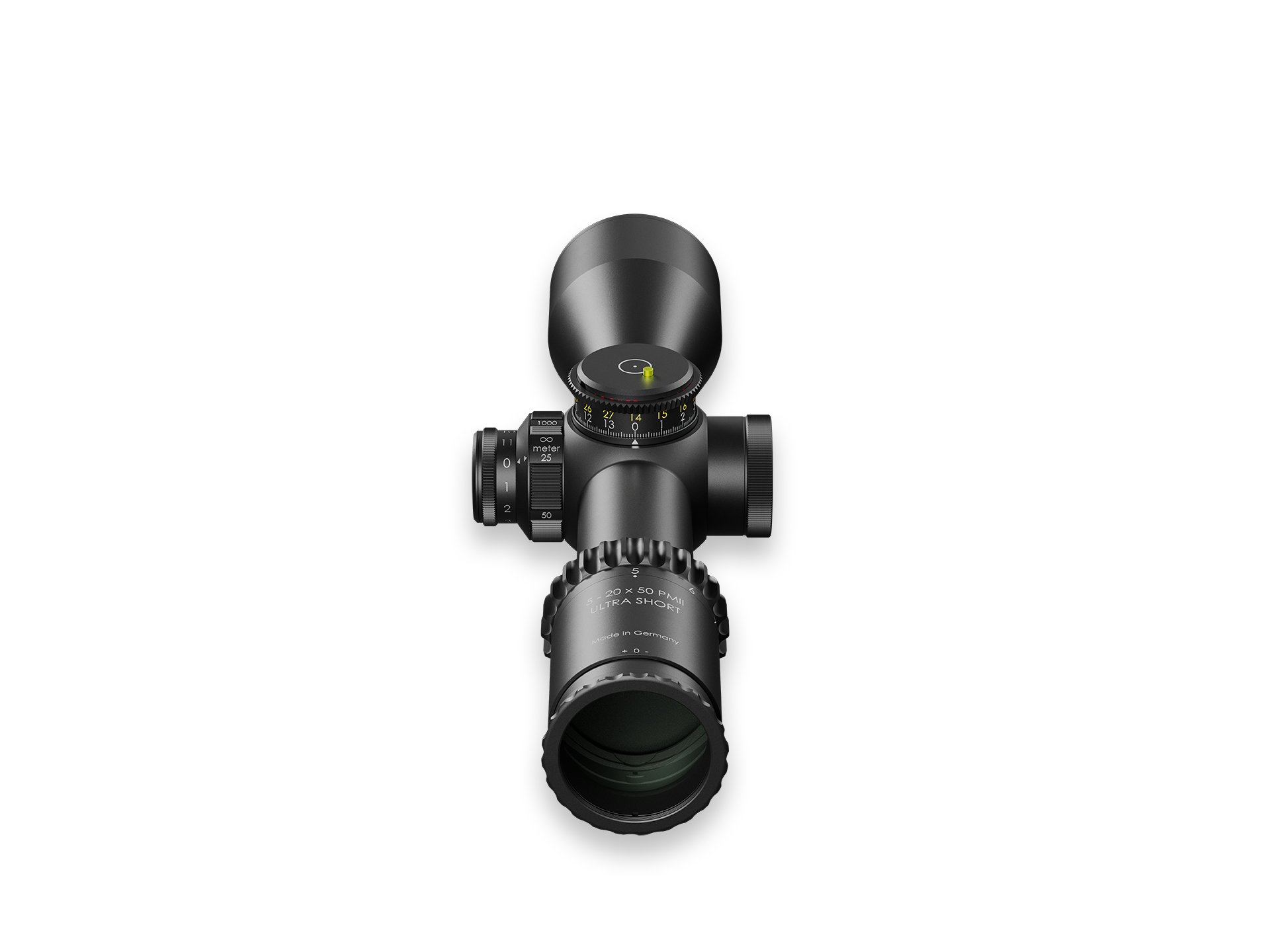

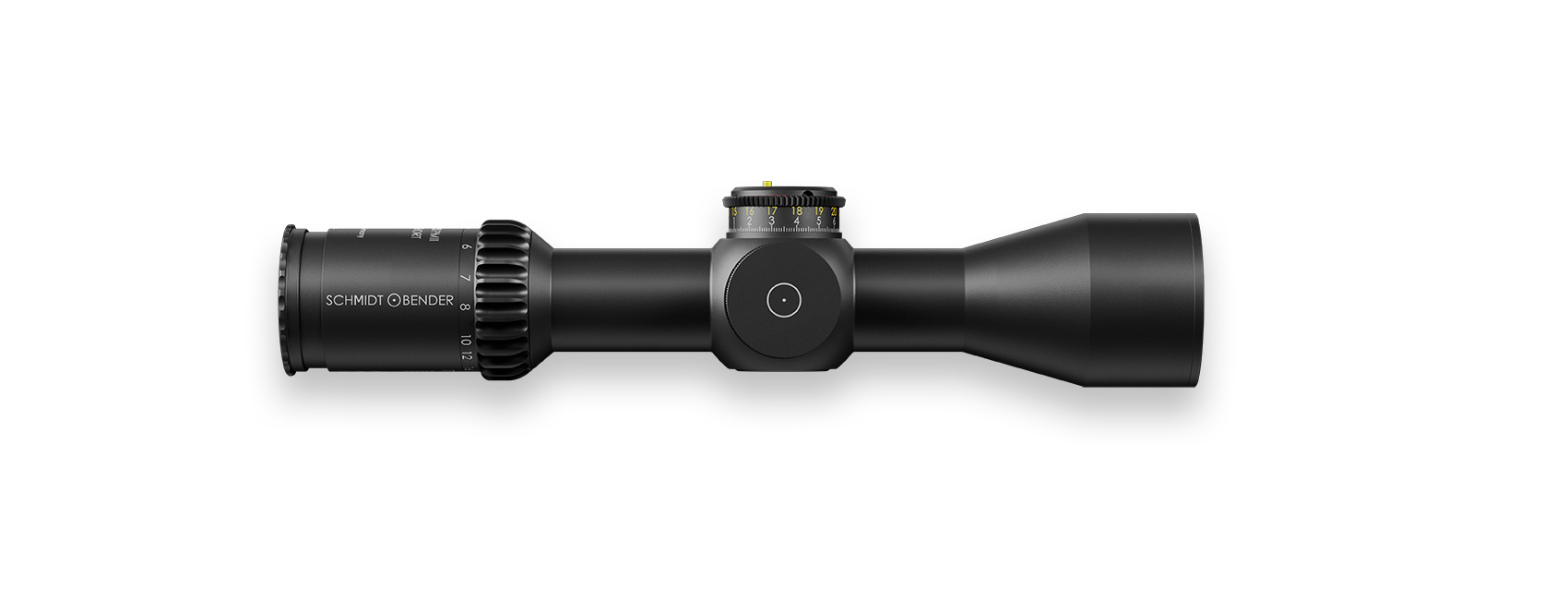

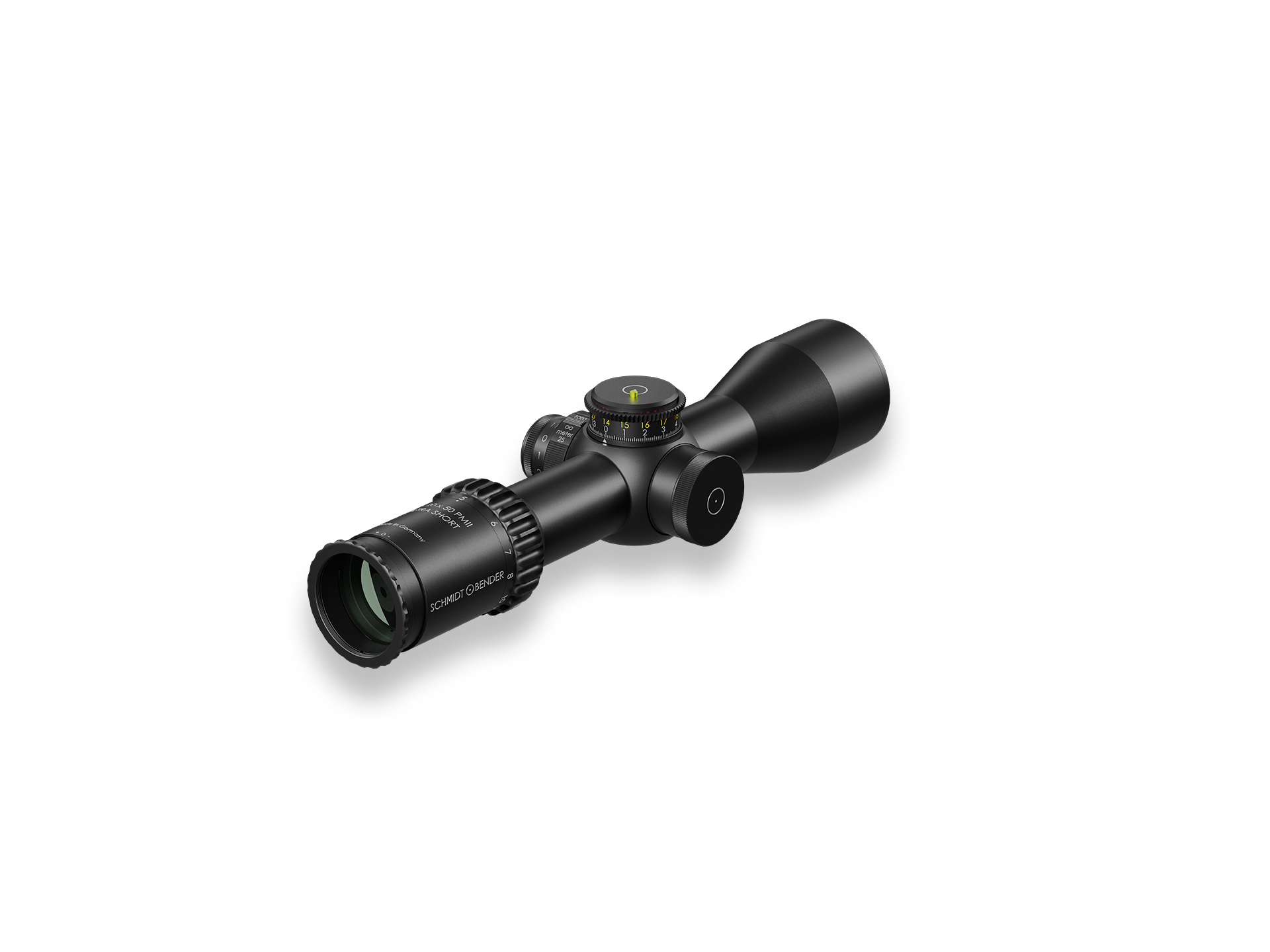

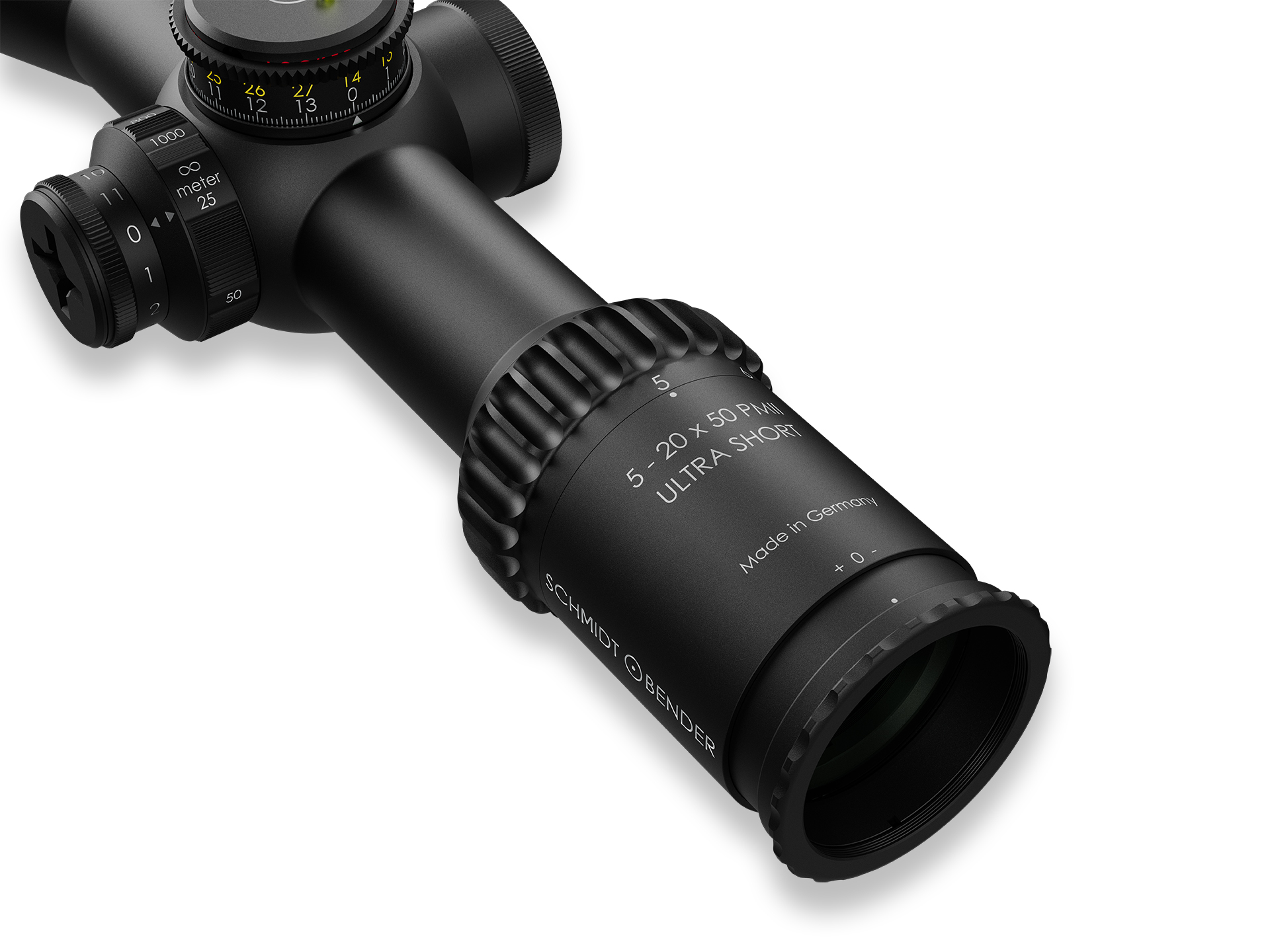

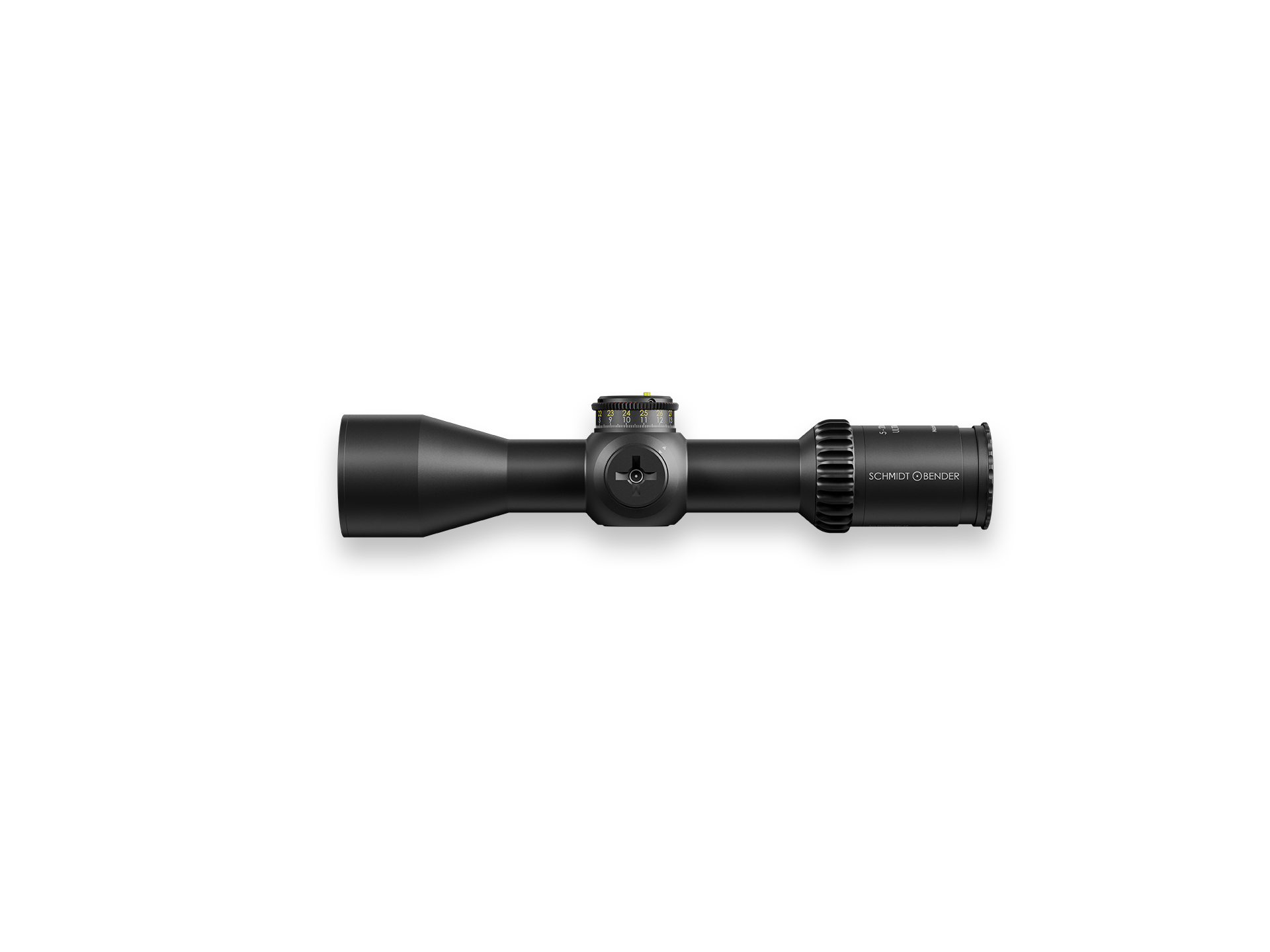

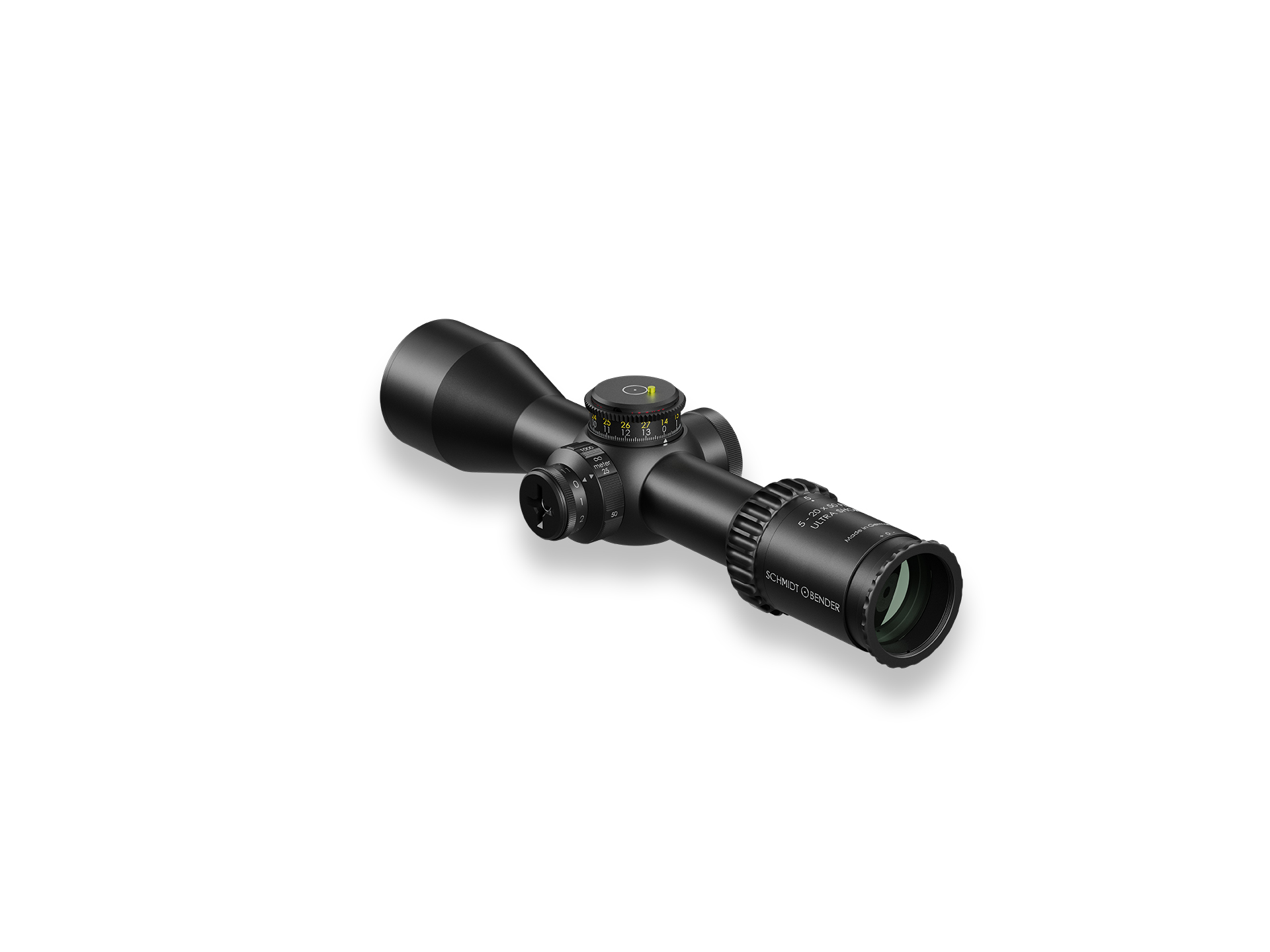

5-20x50 PM II Ultra Short LPI TREMOR5 1cm cw DT27 MTC LT / ST ZC CT

Article number: 173-911-562-G9-E9

The 5-20x50 PM II Ultra Short is the world’s shortest fully capable sniper riflescope and was specifically developed for weapons with limited installation space. Its compact design makes it ideal for semi-automatic rifles with short Picatinny rails, yet it can also be used on bolt-action rifles up to .50 caliber.

Dynamic Static
Short Distance Medium Distance Long Range Extreme Long Range

€5,820.00*

Prices incl. VAT plus shipping costs

Reticle
Find store
Store Locator

Maximum Performance in Compact Form

The 5-20x50 PM II Ultra Short is the world’s shortest fully capable sniper riflescope and was specifically developed for weapons with limited installation space. Its compact design makes it ideal for semi-automatic rifles with short Picatinny rails, yet it can also be used on bolt-action rifles up to .50 caliber. In the prone position, clip-on devices can be operated easily thanks to the short overall length, without changing shooting position.

This unique capability proved decisive in the selection of the optic for the new G210 program of the German Special Forces, as well as in additional procurement processes for military special units and counter-terror teams. In addition to the proven mechanical robustness of Schmidt & Bender, the Ultra Short offers first-class optical performance with extremely high transmission and resolution.

The latest version features the LPI adjustment, improving both mounting options and handling, especially for left-handed users. The new magnification ring also supports the Throw Lever II, enabling rapid magnification changes during operation.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

  1. Length @ 0 dpt (mm | in): 299 | 11.77
  2. Main tube diameter (mm | in): 34 | 1.34
  3. Mounting system: Ring mount
  4. Weight (g | oz): 870 | 30.69
  5. Magnification: 5–20
  6. Internal objective diameter (mm | in): 50 | 1.97
  7. Field-of-view (m/100 m) | (ft/100 yd): 7.8–1.95 | 23.40–5.85
  8. Exit pupil diameter (mm | in): 10.0–2.5 | 0.39–0.10
  9. Eye relief distance (mm | in): 90 | 3.54
  10. Transmission (%): 90 | 3.54
  11. Focal Plane: 1
  12. Diopter adjustment (dpt): –3 to +2
  13. Parallax adjustment (m | yd): 25 – ∞ | 27.34 – ∞
  14. Illumination steps: 11
  15. Temperature – Function (°C | °F): –46 to +63 | –51 to +142
  16. Outer diameter objective (mm | in): 57 | 2.24
  17. Outer diameter ocular (mm | in): 50 | 1.97
  18. Waterproof (m | ft): 3 | 9.84
  19. Click value: 0.1 mrad
  20. Adjustment range elevation: 27 mrad
  1. Illumination color: red
  2. Reticle
  1. Seitenverstellweg 197
  2. Turret Configuration DT27 MTC LT / ST ZC CT (0.1 mrad)
  3. Turret rotation clockwise (cw)

Data & Downloads

  1. Adjustment range elevation: 27 mrad
  2. Weight (g | oz): 870 | 30.69
  3. Exit pupil diameter (mm | in): 10.0–2.5 | 0.39–0.10
  4. Main tube diameter (mm | in): 34 | 1.34
  5. Maximalvergroesserung 20
  6. Variante Standardausführung
  7. Field-of-view (m/100 m) | (ft/100 yd): 7.8–1.95 | 23.40–5.85
  8. Bildebene-Auswahl 1. Bildebene - Glas (FFP)
  9. Kappe Tenebraex
  10. Illumination color: red
  11. Temperature – Function (°C | °F): –46 to +63 | –51 to +142
  12. Turret Configuration DT27 MTC LT / ST ZC CT (0.1 mrad)
  13. Batterie CR2032
  14. Minimalvergroesserung 5
  15. Outer diameter objective (mm | in): 57 | 2.24
  16. Length @ 0 dpt (mm | in): 299 | 11.77
  17. Magnification: 5–20
  18. Variant / Option 3 562
  19. Ausfuehrung ZF mit Beleuchtung integriert in Parallaxe
  20. Internal objective diameter (mm | in): 50 | 1.97
  21. Turret rotation clockwise (cw)
  22. CleaningKit Optik Cleaning Kit Pro
  23. Illumination steps: 11
  24. Eye relief distance (mm | in): 90 | 3.54
  25. Seitenverstellweg 197
  26. Variant / Option 1 1
  27. Diopter adjustment (dpt): –3 to +2
  28. Parallax adjustment (m | yd): 25 – ∞ | 27.34 – ∞
  29. Focal Plane: 1
  30. TypBezeichnung 5-20x50 PM II
  31. Variant / Option 2 911
  32. Variant / Option 5 E9
  33. Transmission (%): 90 | 3.54
  34. Outer diameter ocular (mm | in): 50 | 1.97
  35. Rohrkoerper LM-Rohr ohne Schiene, D34mm
  36. Mounting system: Ring mount
  37. Variant / Option 4 G9
  38. Reticle TREMOR5
  39. Click value: 0.1 mrad
  40. Color: black
  41. Waterproof (m | ft): 3 | 9.84
