3-27x56 PM II High Power LP MSR2 1cm ccw DT II+ MTC LT / ST II ZC LT

Article number: 669-911-842-M2-I5
The 3-27x56 PM II High Power is an extremely versatile riflescope originally developed for the USSOCOM “ELR Program,” which it won in 2012. Since then, it has become a preferred optic for medium to extreme engagement distances.
Dynamic Static
Short Distance Medium Distance Long Range Extreme Long Range

€6,550.00*

Prices incl. VAT plus shipping costs

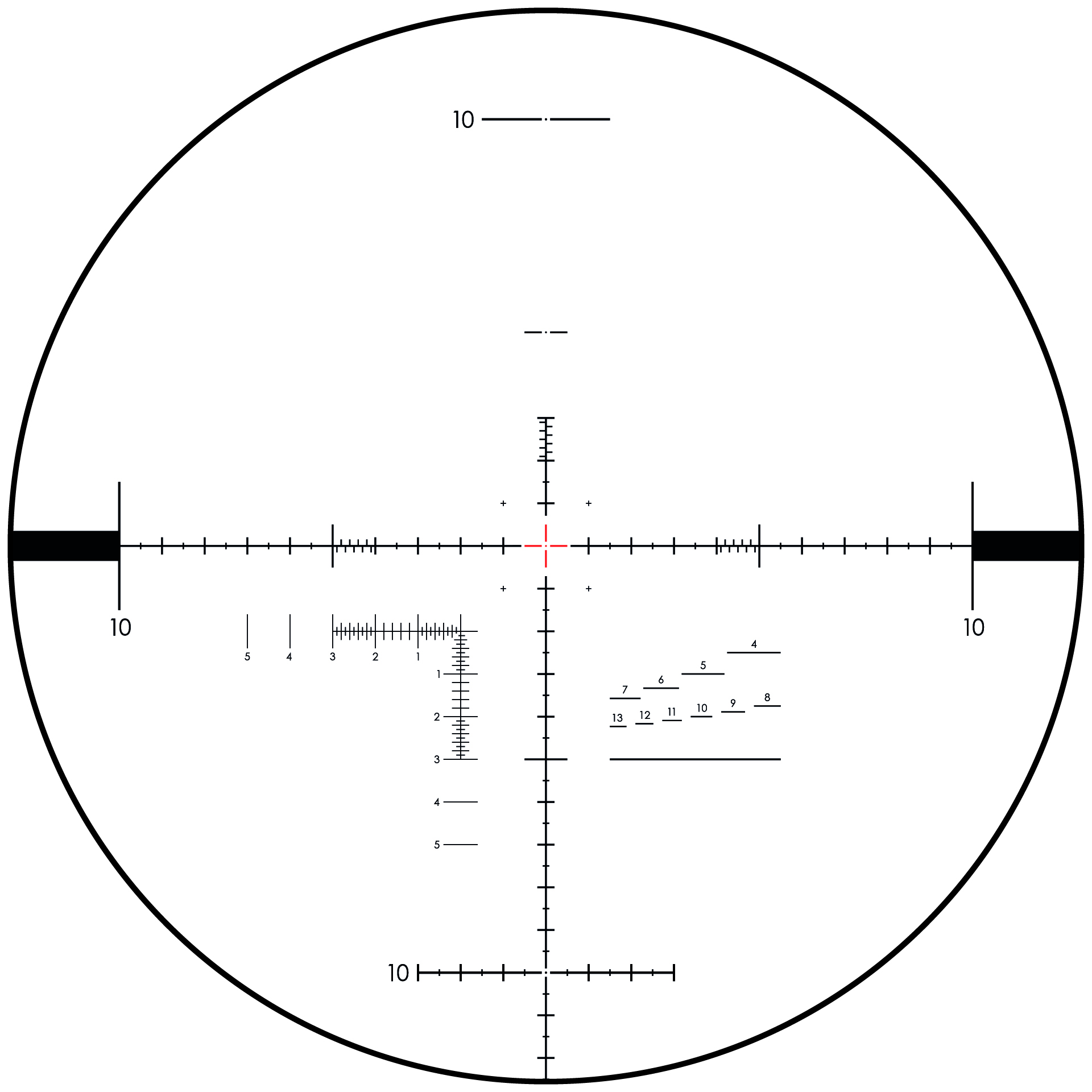

Reticle
Find store
Store Locator

Maximum operational flexibility

The 3-27x56 PM II High Power is an extremely versatile riflescope originally developed for the USSOCOM “ELR Program,” which it won in 2012. Since then, it has become a preferred optic for medium to extreme engagement distances. Its wide magnification range makes it highly effective on multi-caliber platforms, and it is used by additional NATO partners as well as police and special units.

The 9× zoom provides a broad operational spectrum, supported by a very large field of view and a generous exit pupil. High transmission and excellent resolution ensure reliable detection and identification at long ranges. With more than 40 mrad of internal elevation adjustment, it offers the necessary reserves for extreme-distance shooting.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

  1. Length @ 0 dpt (mm | in): 398 | 15.67
  2. Main tube diameter (mm | in): 34 | 1.34
  3. Mounting system: Ring mount
  4. Weight (g | oz): 1140 | 40.21
  5. Magnification: 3–27
  6. Internal objective diameter (mm | in): 56 | 2.20
  7. Field-of-view (m/100 m) | (ft/100 yd): 12.98–1.4 | 39.00–4.20
  8. Exit pupil diameter (mm | in): 8.7–2.1 | 0.34–0.08
  9. Eye relief distance (mm | in): 90 | 3.54
  10. Transmission (%): 90 | 3.54
  11. Focal Plane: 1
  12. Diopter adjustment (dpt): –3 to +2
  13. Parallax adjustment (m | yd): 10 – ∞ | 10.94 – ∞
  14. Illumination steps: 11
  15. Temperature – Function (°C | °F): –46 to +63 | –51 to +142
  16. Outer diameter objective (mm | in): 62 | 2.44
  17. Outer diameter ocular (mm | in): 50 | 1.97
  18. Waterproof (m | ft): 3 | 9.84
  19. Click value: 0.1 mrad
  20. Adjustment range elevation: 30.5 mrad
  1. Illumination color: red
  2. Reticle
  1. Seitenverstellweg 213
  2. Turret Configuration DT II+ MTC LT / ST II ZC LT (0.1 mrad)
  3. Turret rotation counterclockwise (ccw)

Data & Downloads

  1. Main tube diameter (mm | in): 34 | 1.34
  2. Variante Standardausführung
  3. Variant / Option 4 M2
  4. Bildebene-Auswahl 1. Bildebene - Glas (FFP)
  5. Kappe Tenebraex
  6. Variant / Option 3 842
  7. Illumination color: red
  8. Temperature – Function (°C | °F): –46 to +63 | –51 to +142
  9. Variant / Option 1 6
  10. Turret rotation counterclockwise (ccw)
  11. Batterie CR2032
  12. Field-of-view (m/100 m) | (ft/100 yd): 12.98–1.4 | 39.00–4.20
  13. Variant / Option 5 I5
  14. Turret Configuration DT II+ MTC LT / ST II ZC LT (0.1 mrad)
  15. Seitenverstellweg 213
  16. Magnification: 3–27
  17. Adjustment range elevation: 30.5 mrad
  18. CleaningKit Optik Cleaning Kit Pro
  19. Illumination steps: 11
  20. Eye relief distance (mm | in): 90 | 3.54
  21. Diopter adjustment (dpt): –3 to +2
  22. Weight (g | oz): 1140 | 40.21
  23. Parallax adjustment (m | yd): 10 – ∞ | 10.94 – ∞
  24. Reticle MSR2
  25. Focal Plane: 1
  26. Variant / Option 2 911
  27. Transmission (%): 90 | 3.54
  28. Exit pupil diameter (mm | in): 8.7–2.1 | 0.34–0.08
  29. Length @ 0 dpt (mm | in): 398 | 15.67
  30. Maximalvergroesserung 27
  31. Ausfuehrung ZF mit Beleuchtung als Sonderausführung
  32. Outer diameter ocular (mm | in): 50 | 1.97
  33. Outer diameter objective (mm | in): 62 | 2.44
  34. Rohrkoerper LM-Rohr ohne Schiene, D34mm
  35. Mounting system: Ring mount
  36. Internal objective diameter (mm | in): 56 | 2.20
  37. Click value: 0.1 mrad
  38. Minimalvergroesserung 3 | 9.84
  39. Color: black
  40. TypBezeichnung 3-27x56 PM II
  41. Waterproof (m | ft): 3 | 9.84
