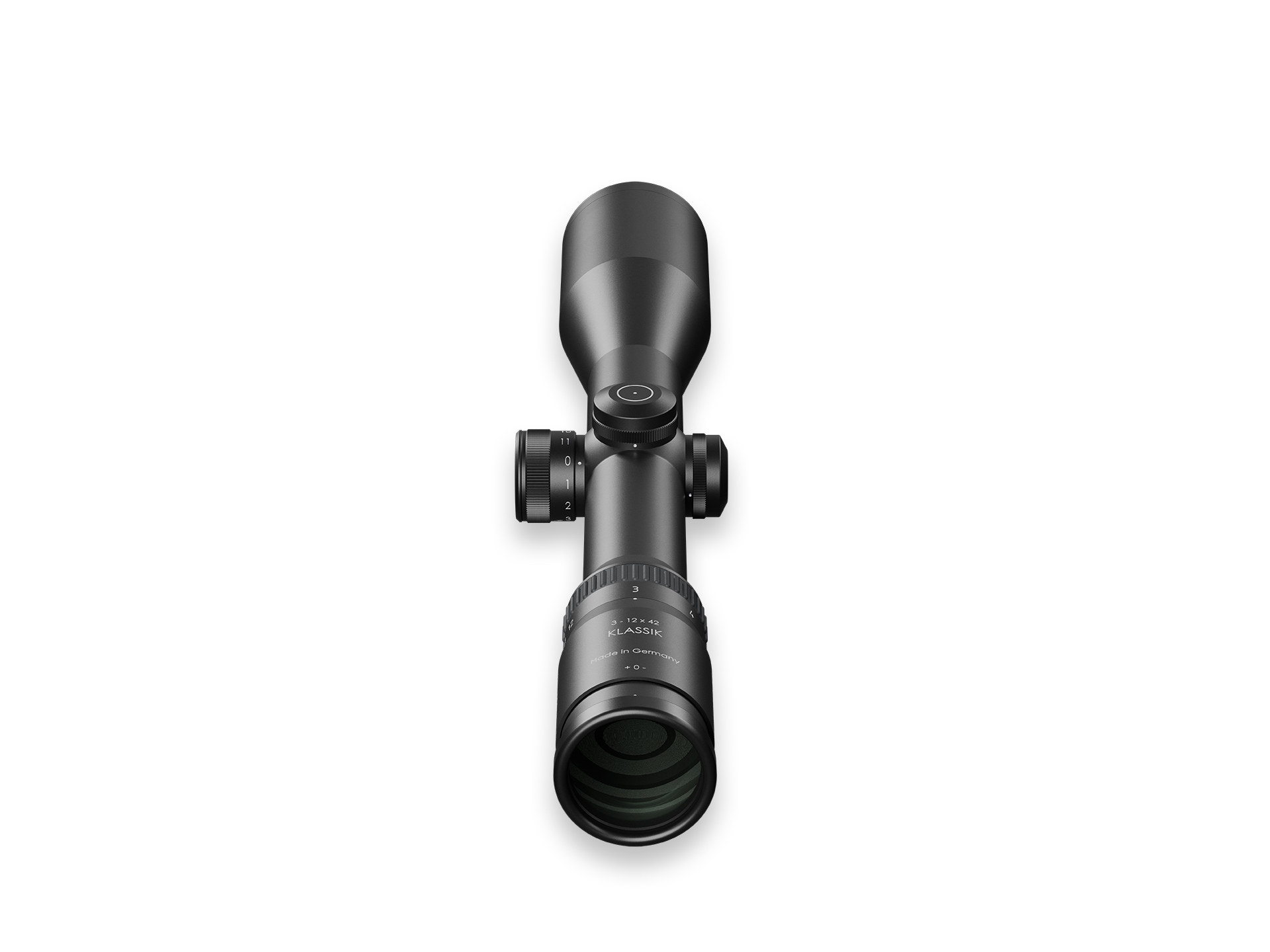

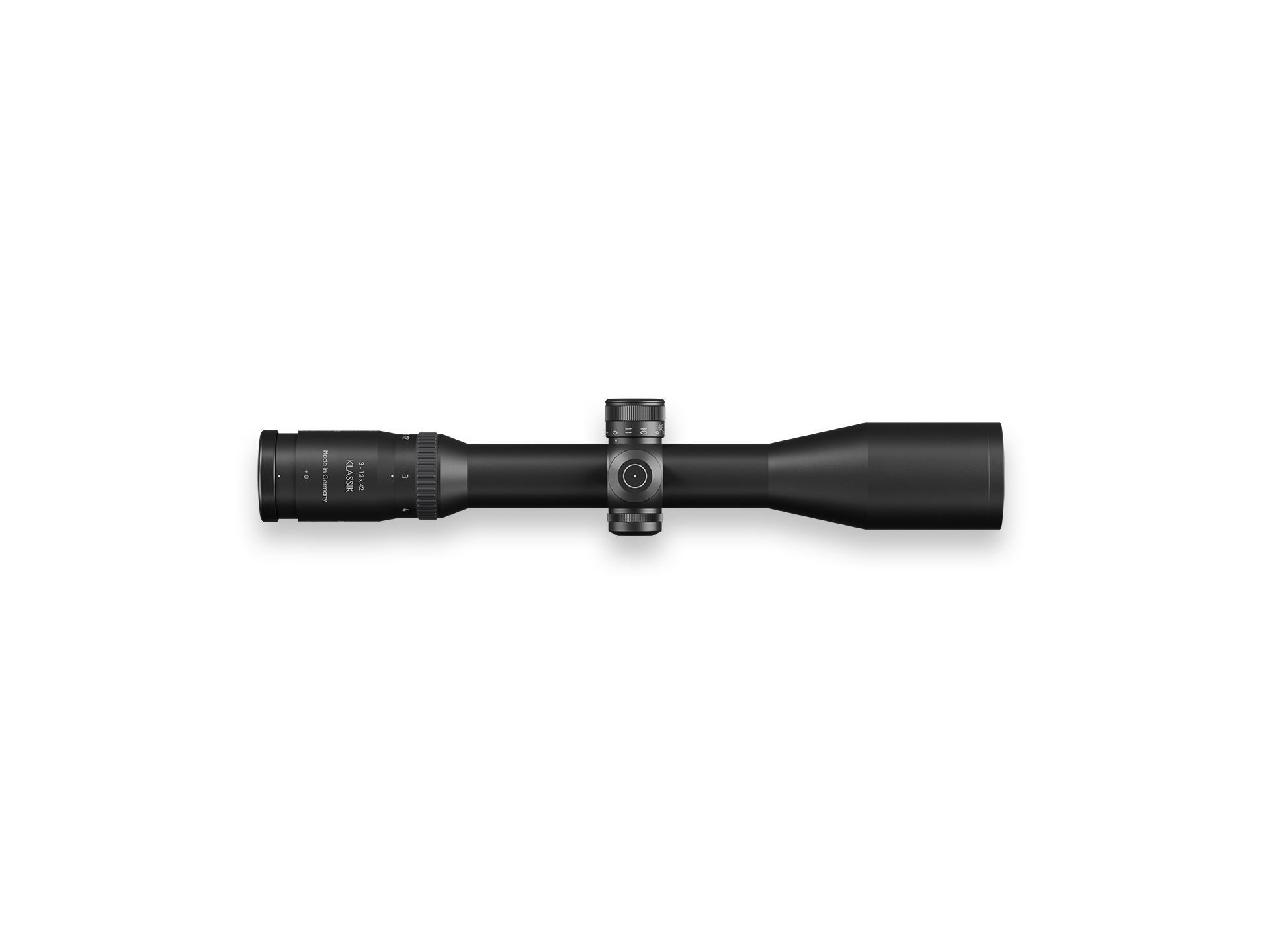

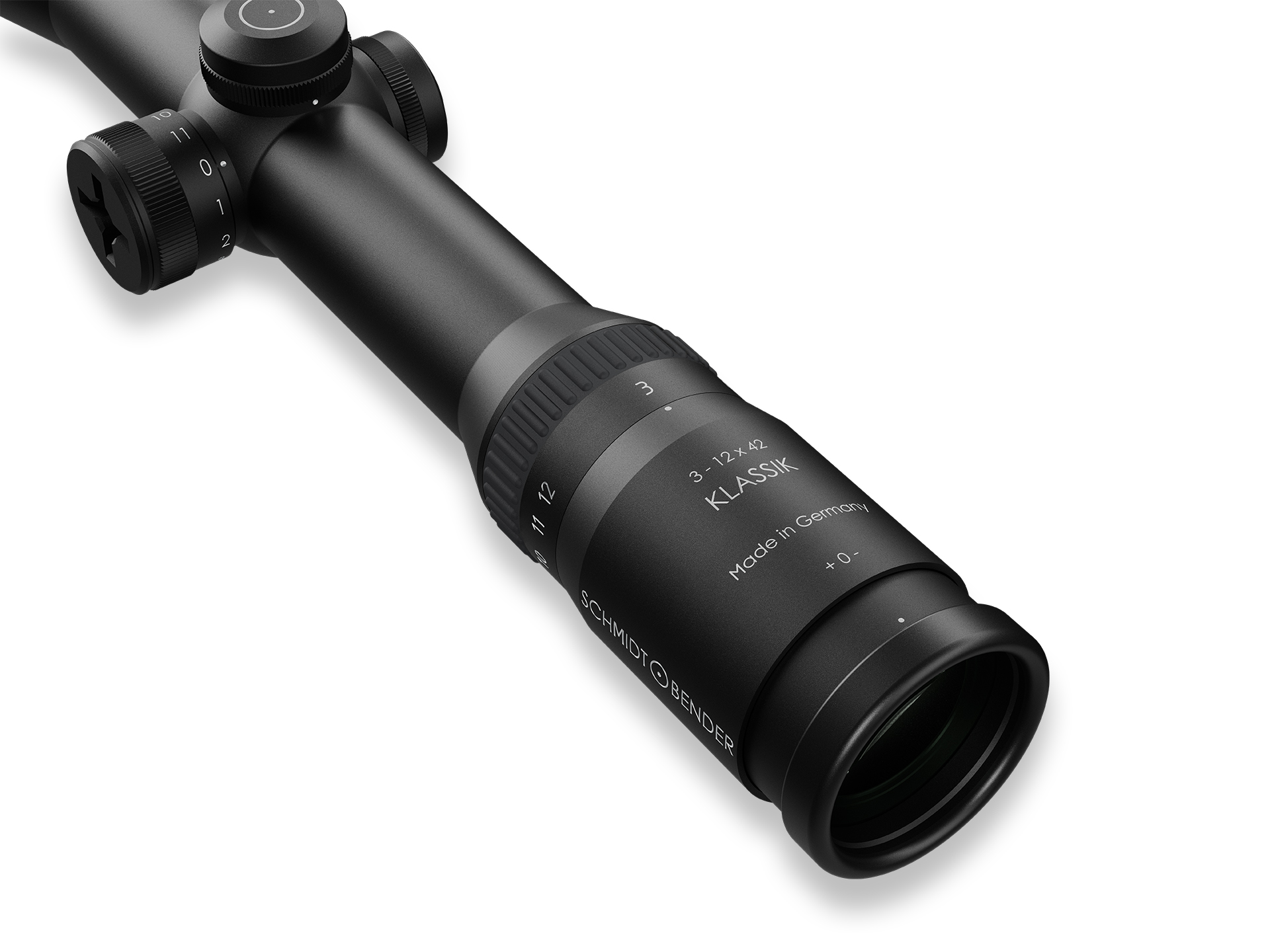

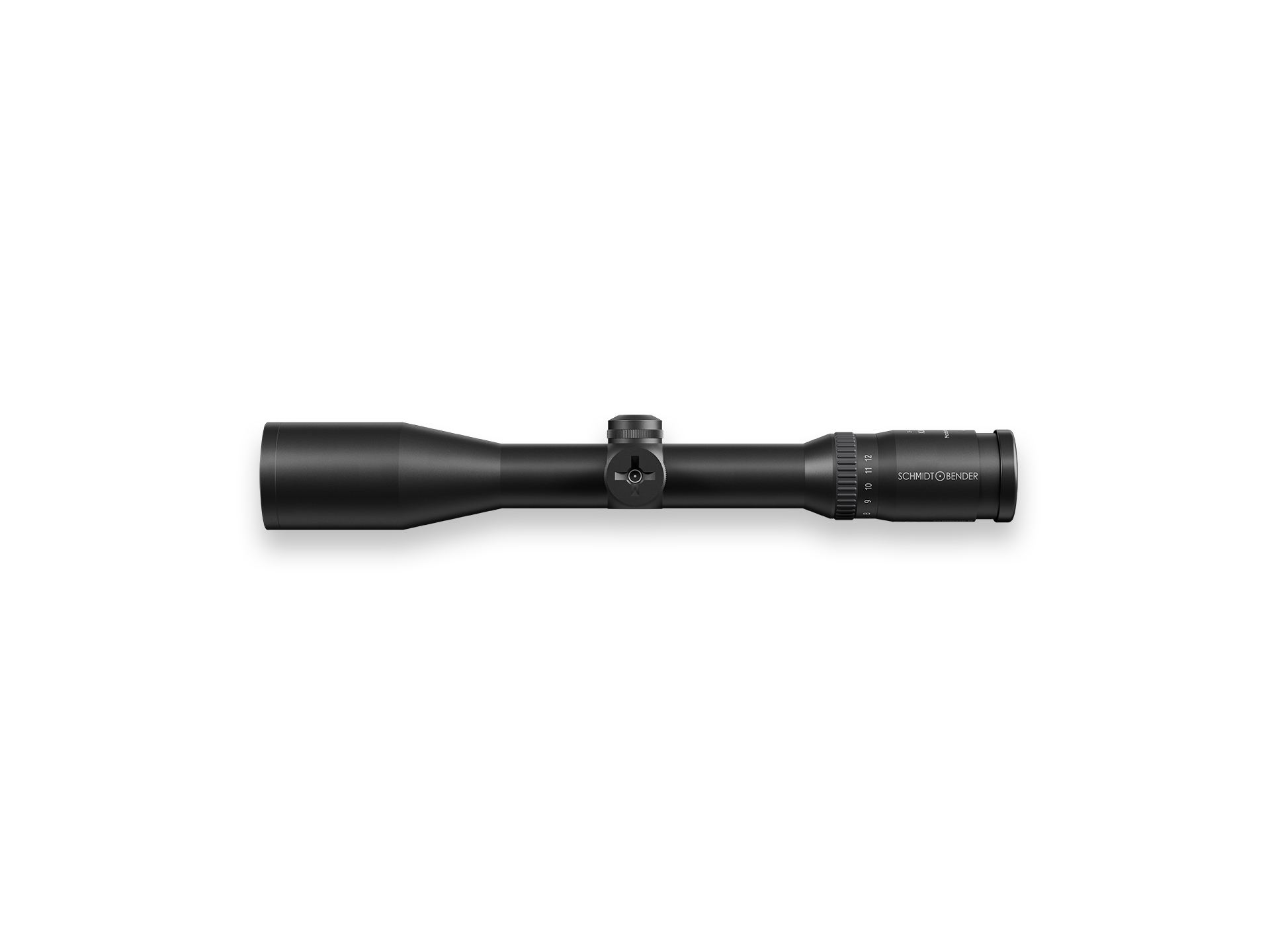

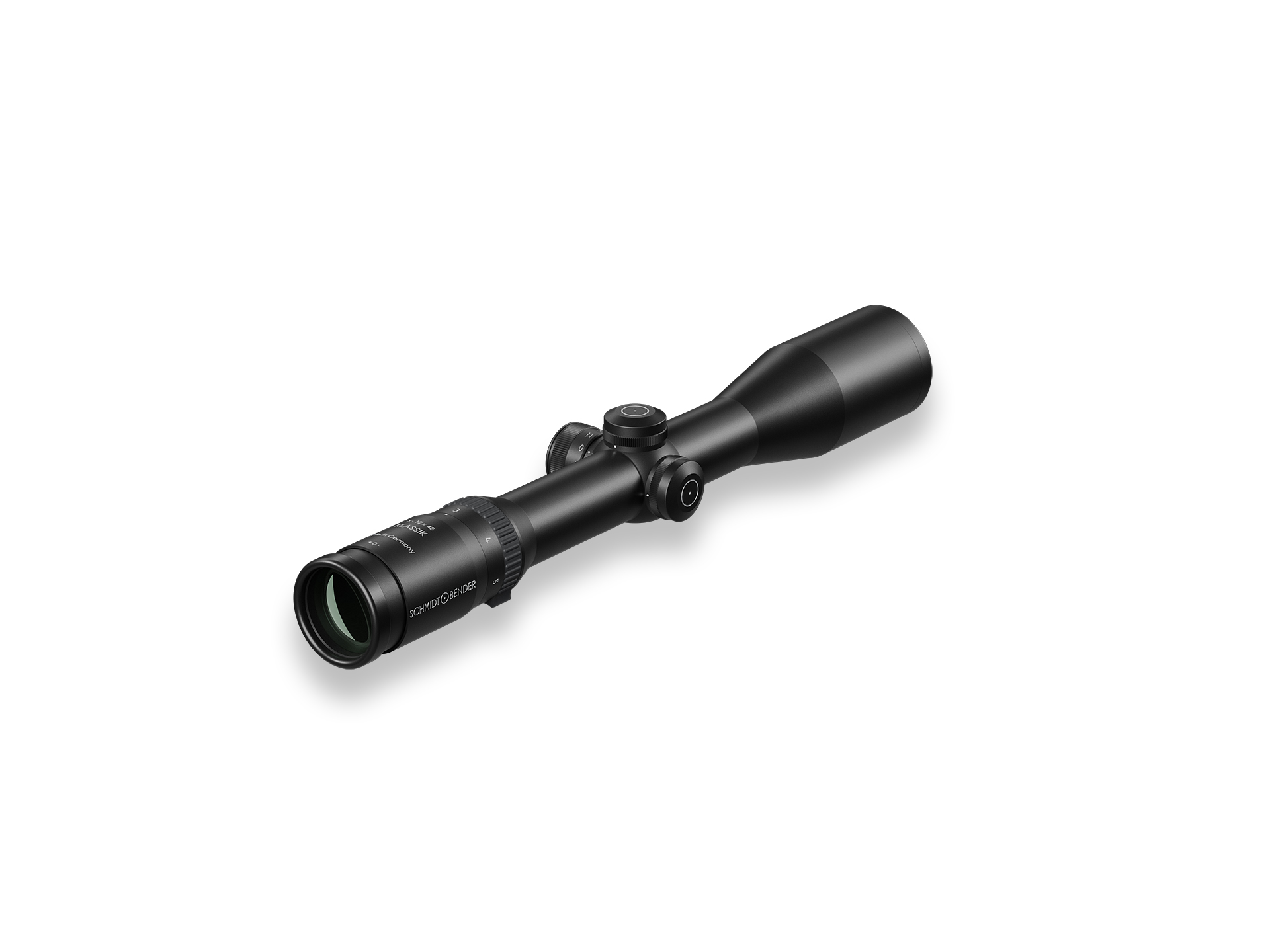

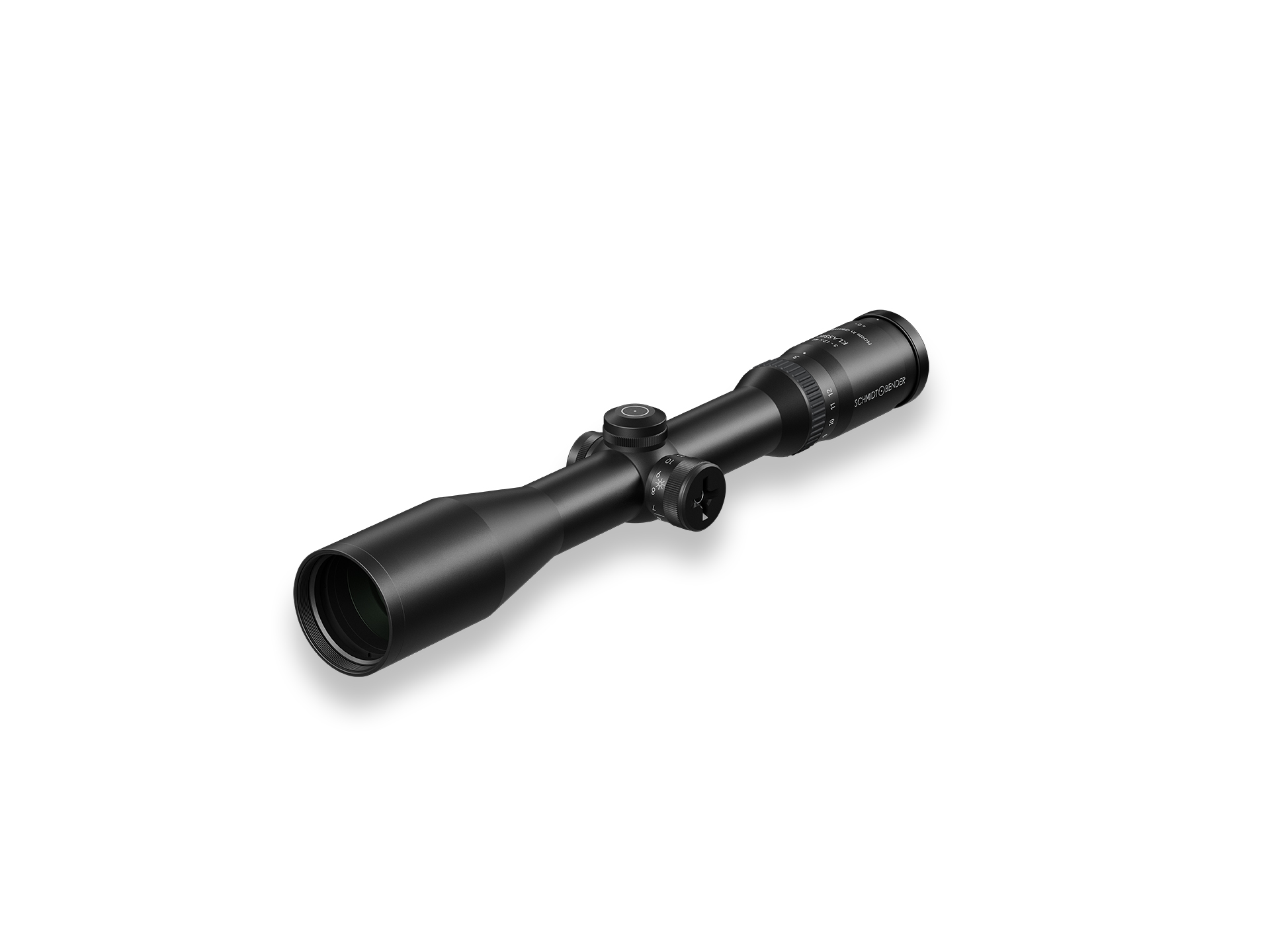

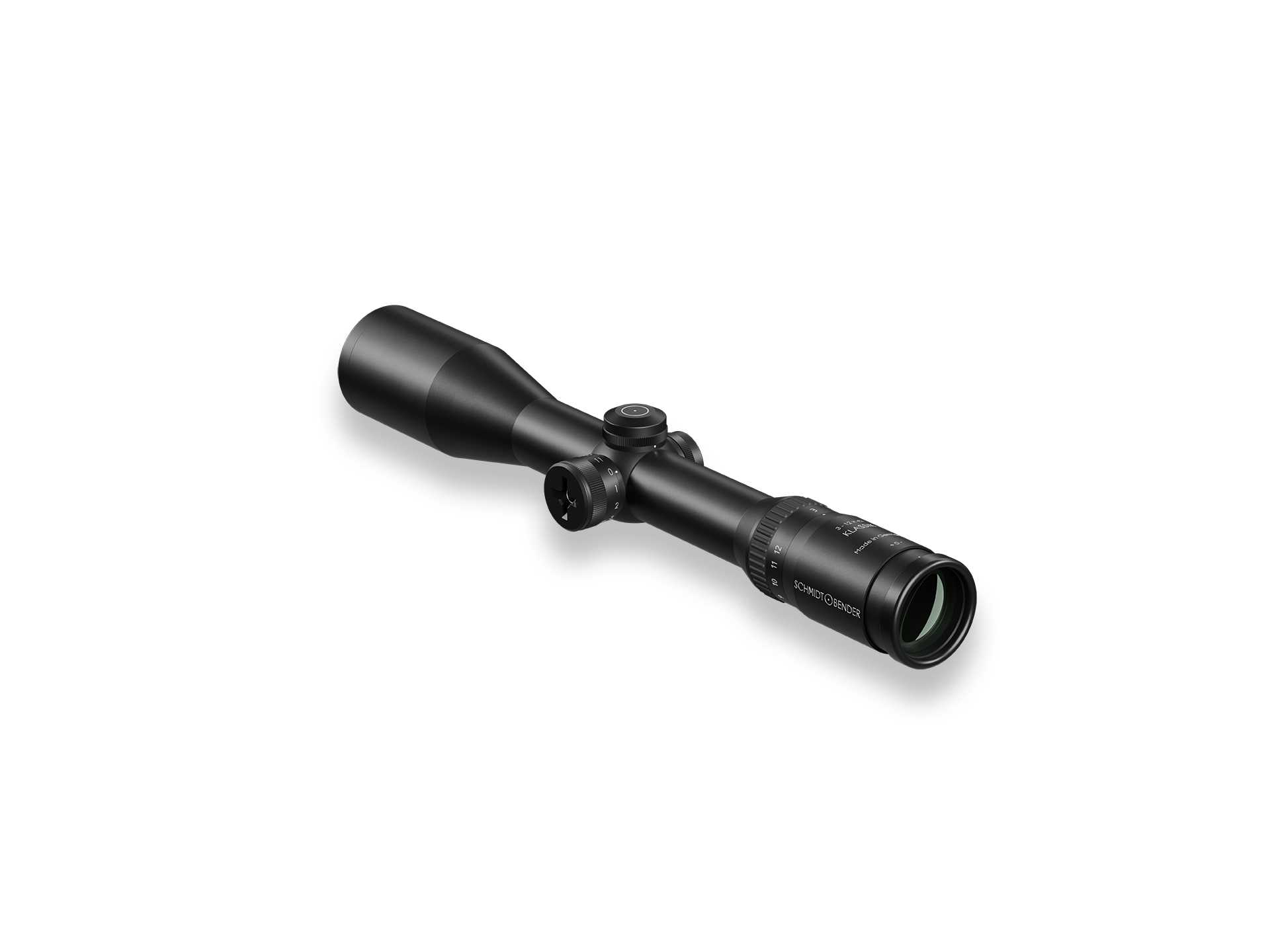

3-12x42 Klassik LM L3 1cm cw Klassik CT / Klassik CT
Article number:
645-811-482-05-05A02
€1,470.00*
The compact 42 mm objective gives the 3-12x42 Klassik an utmost elegant design which fits perfectly to classic looking rifles. The signature lean design allows the riflescope to be mounted at a rather lower height which improves the practicality of the whole rifle system. This and the very reliable and rugged construction makes it also perfect for hunting abroad.
Login
Data & Downloads
-
Focal Plane 1. FP
-
Transmission (%) 90
-
Diopter adjustment (dpt) -3 to +2
-
Exit pupil diameter (mm/in) 14,0-5,6/0.55-0.22
-
Magnification 3-12
-
illuminated reticle yes
-
Parallax adjustment (options) no
-
Length (mm/in) 346/13.62
-

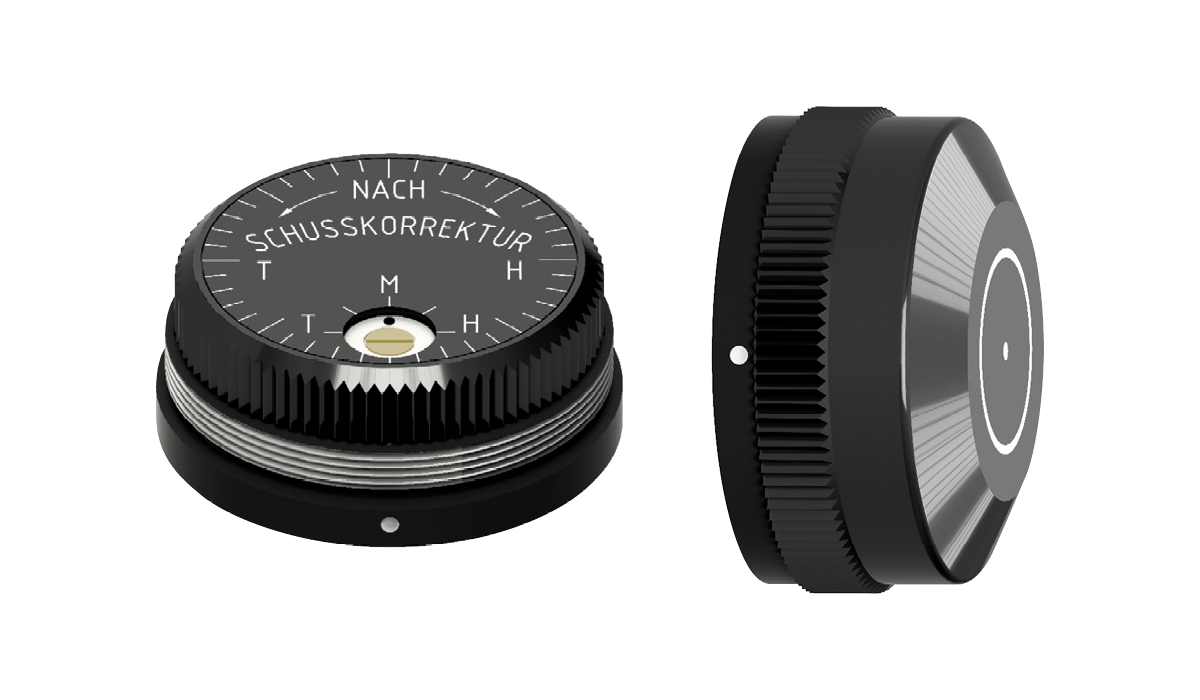

Turrets Configurations Klassik CT / Klassik CT
-
Turret Rotation clockwise
-
Twilight factor 11,2-22,4
-
Eye relief distance (mm)/(in) 90/3.54
-
Turrets (Elevation/Windage) Klassik CT / Klassik CT Adjustment range windage (internal) 108 cm/100 m, Adjustment range elevation 108 cm/100 m, Adjustment range windage +- 54 cm/100 m, Click value 1cm/100m, Adjustment range elevation (internal) 108 cm/100 m
-
Weight (g) 600/21.87
-
Field-of-view (°) 6.4-1.9
-
Mounting System Ring mount
-
Objective diameter (mm/in) 42/1.65
-
Field-of-view (m/100 m)/(ft/100 yd) 11.1-3.4/33.3-10.2
-
Reticle L3
-
Color black
-
Main tube diameter mm 30 mm
-
Illumination 11
