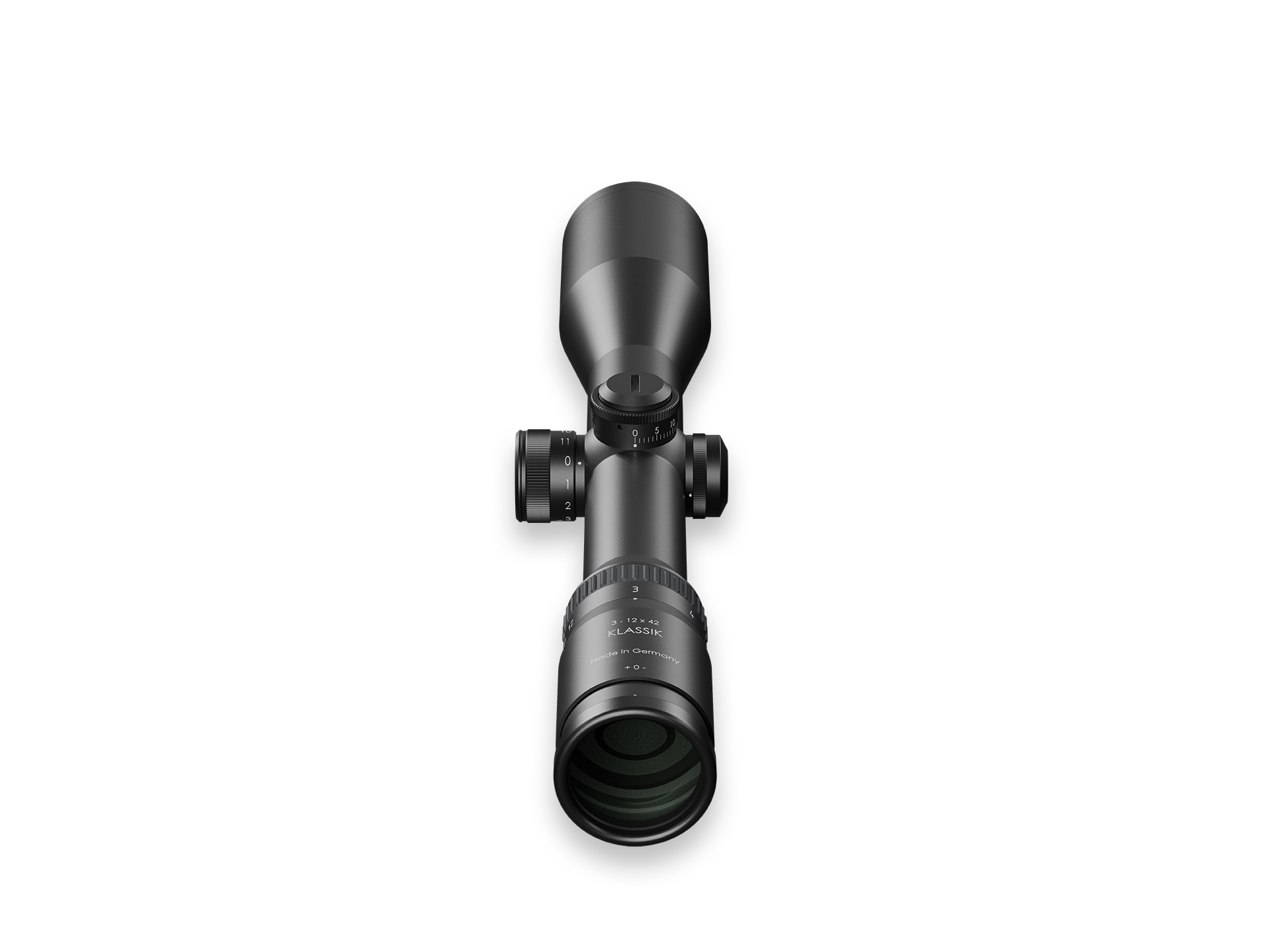

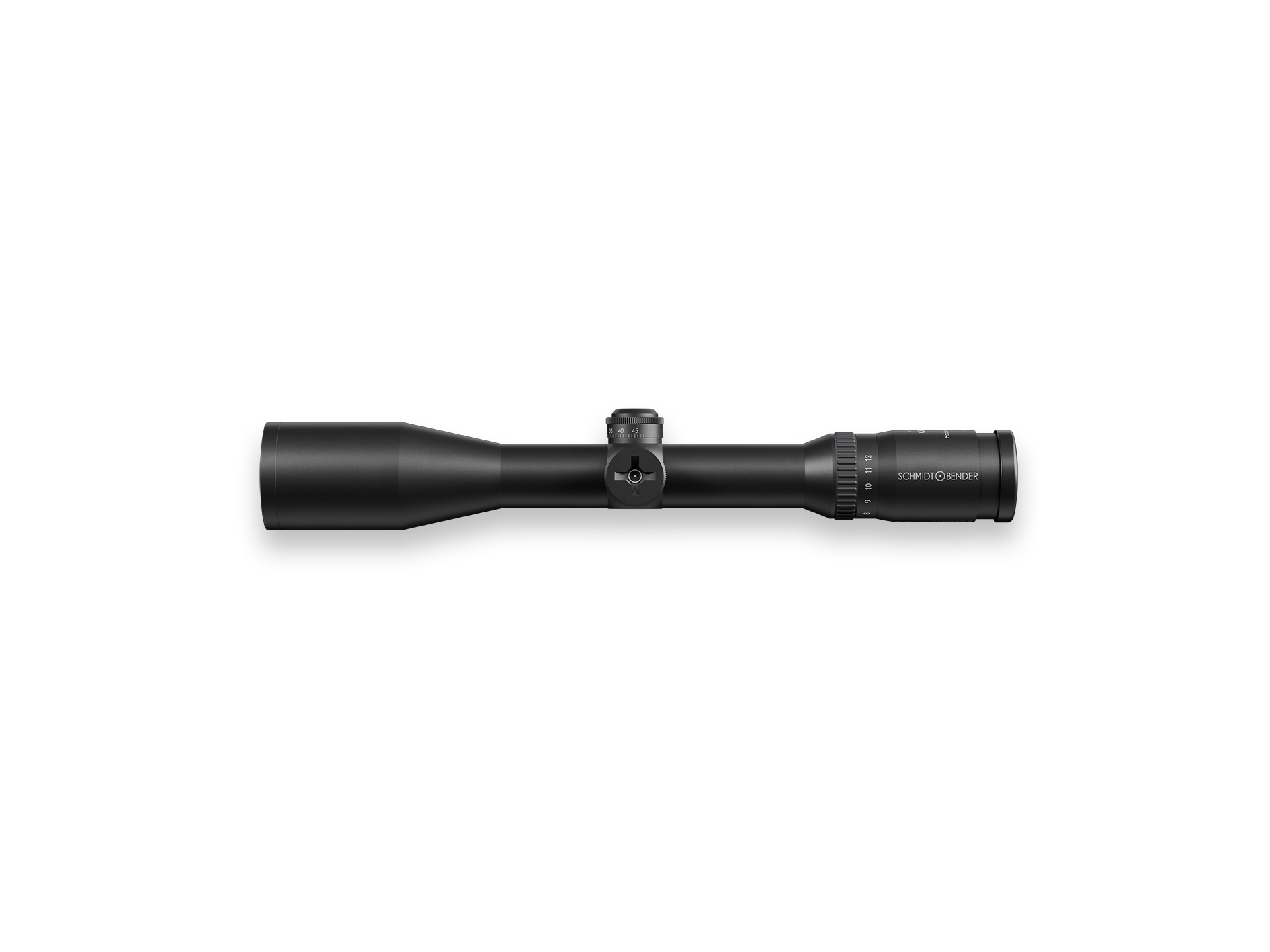

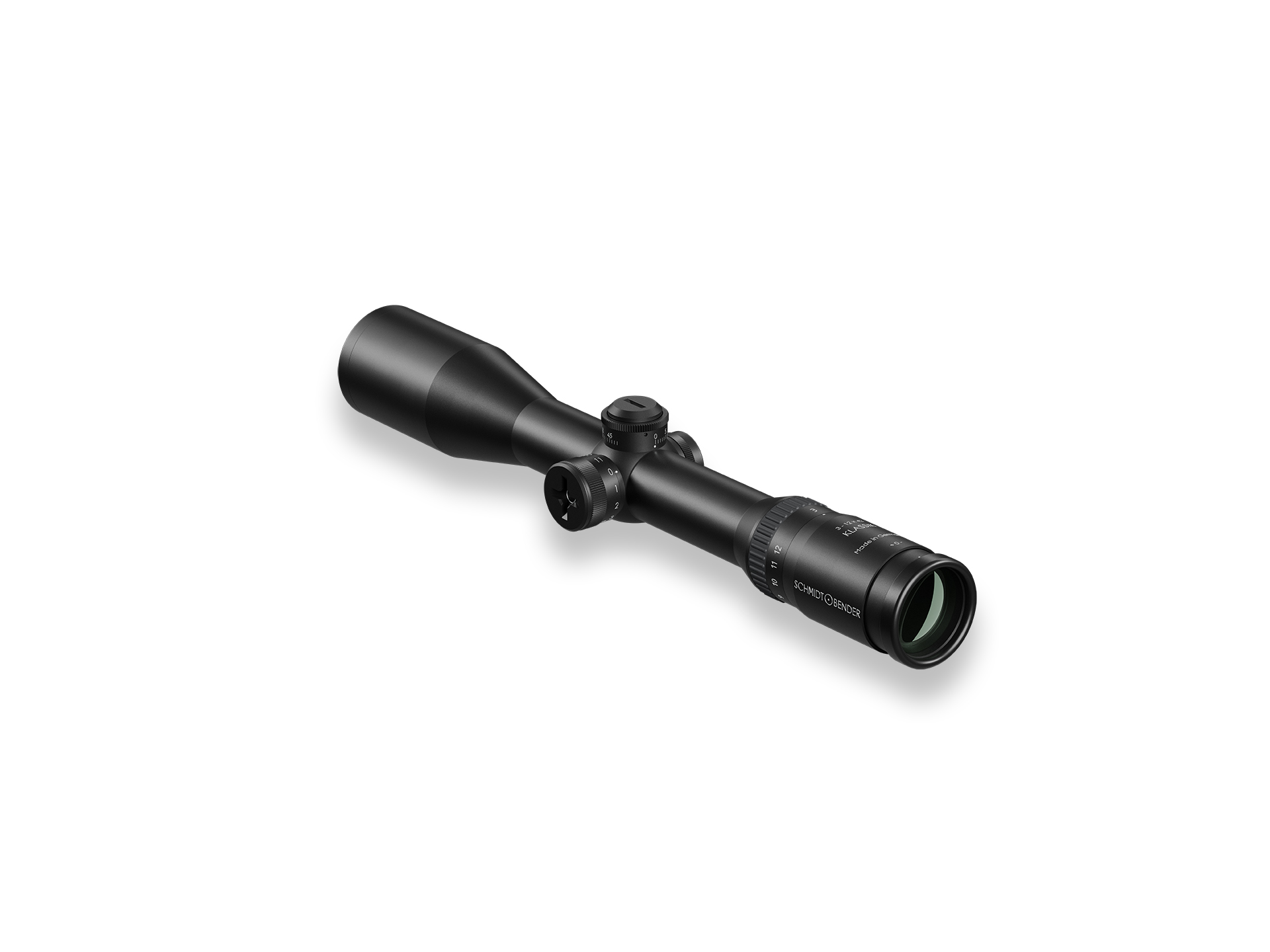

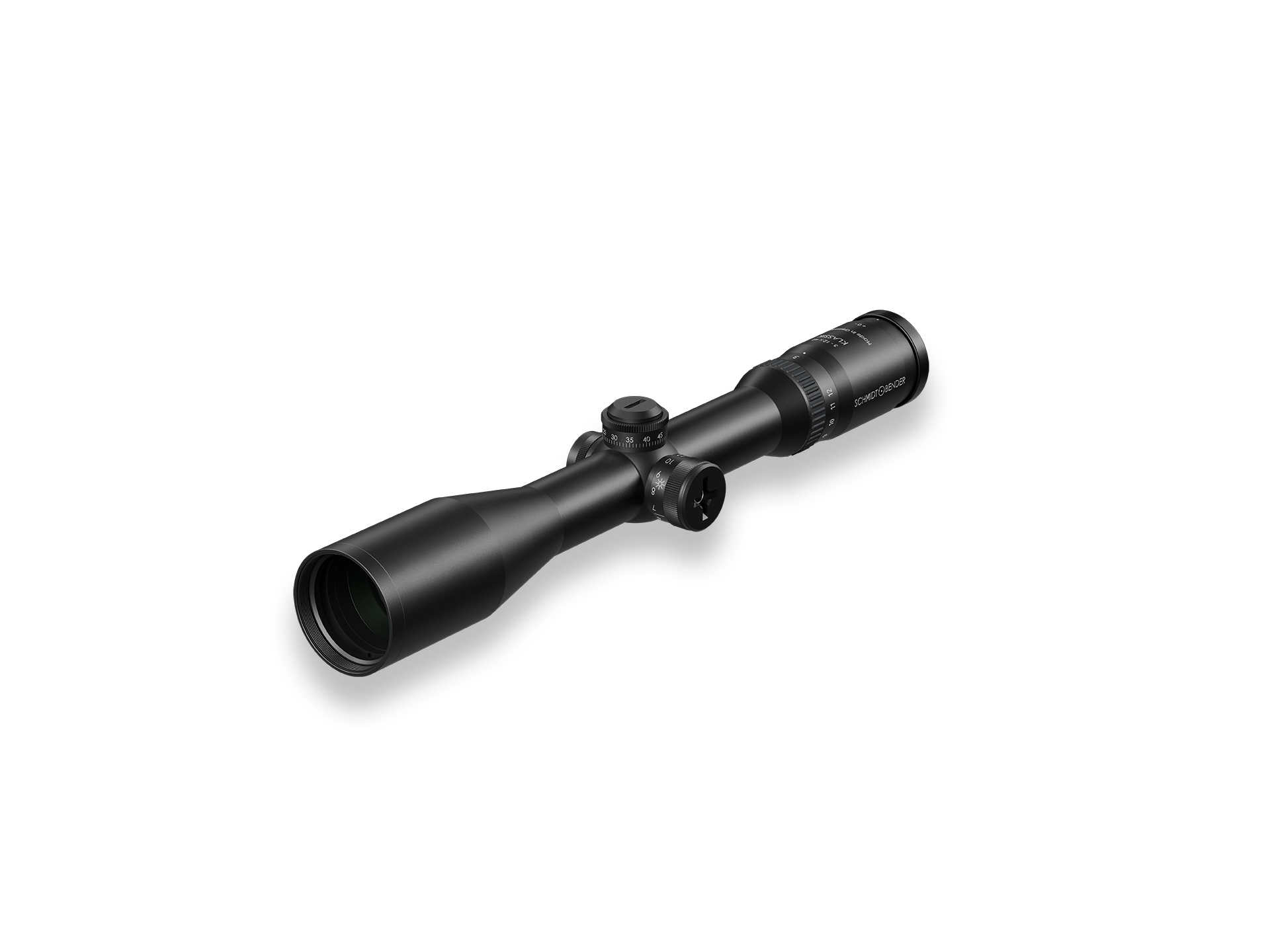

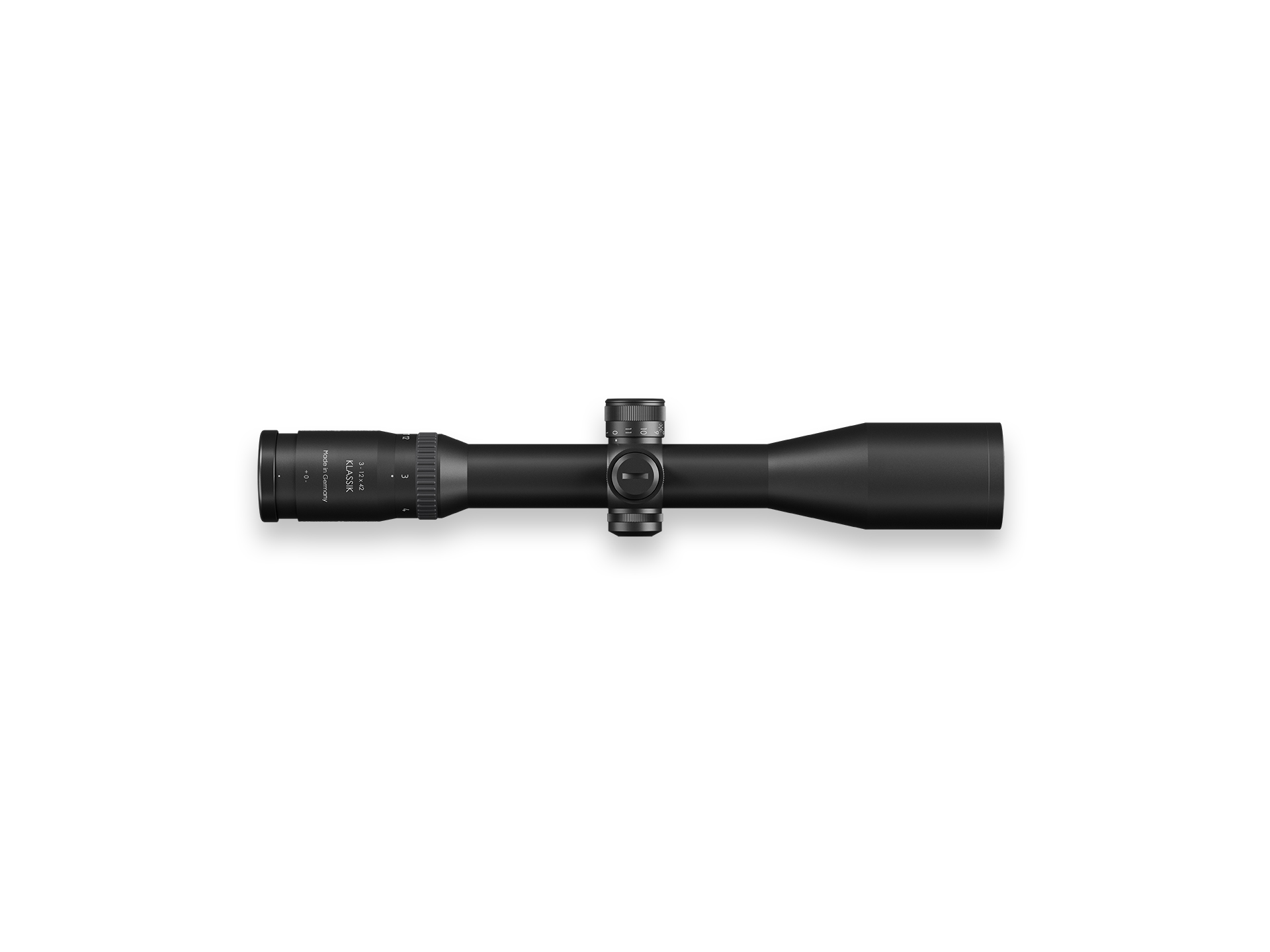

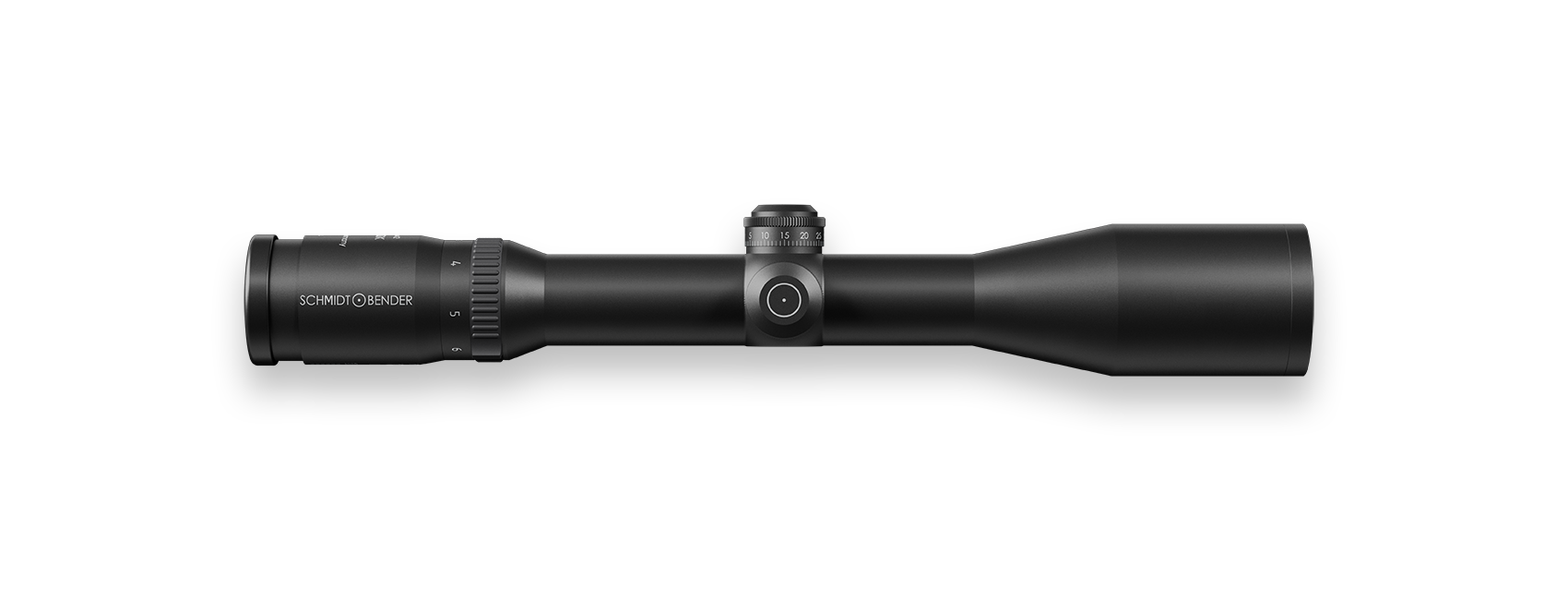

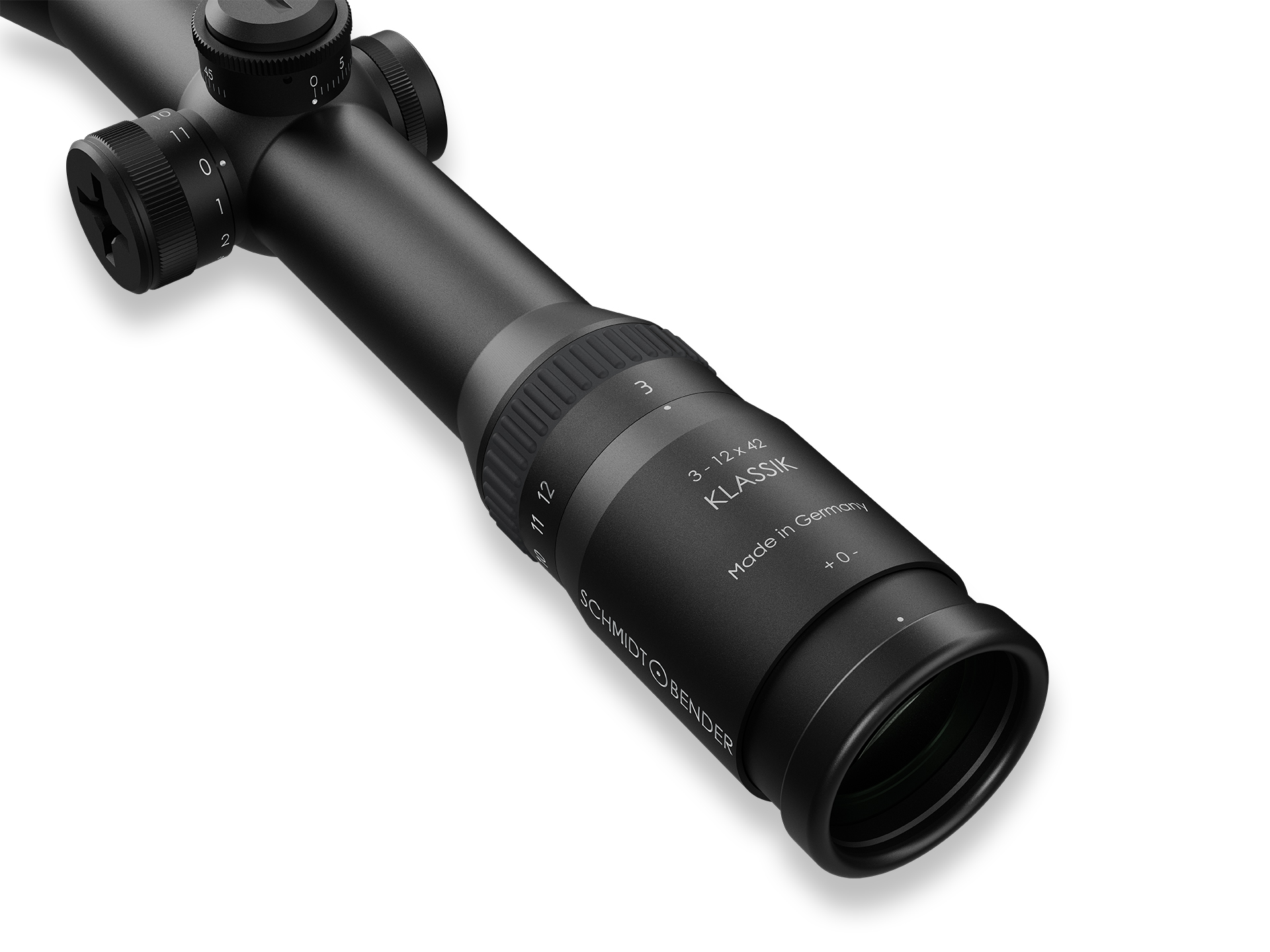

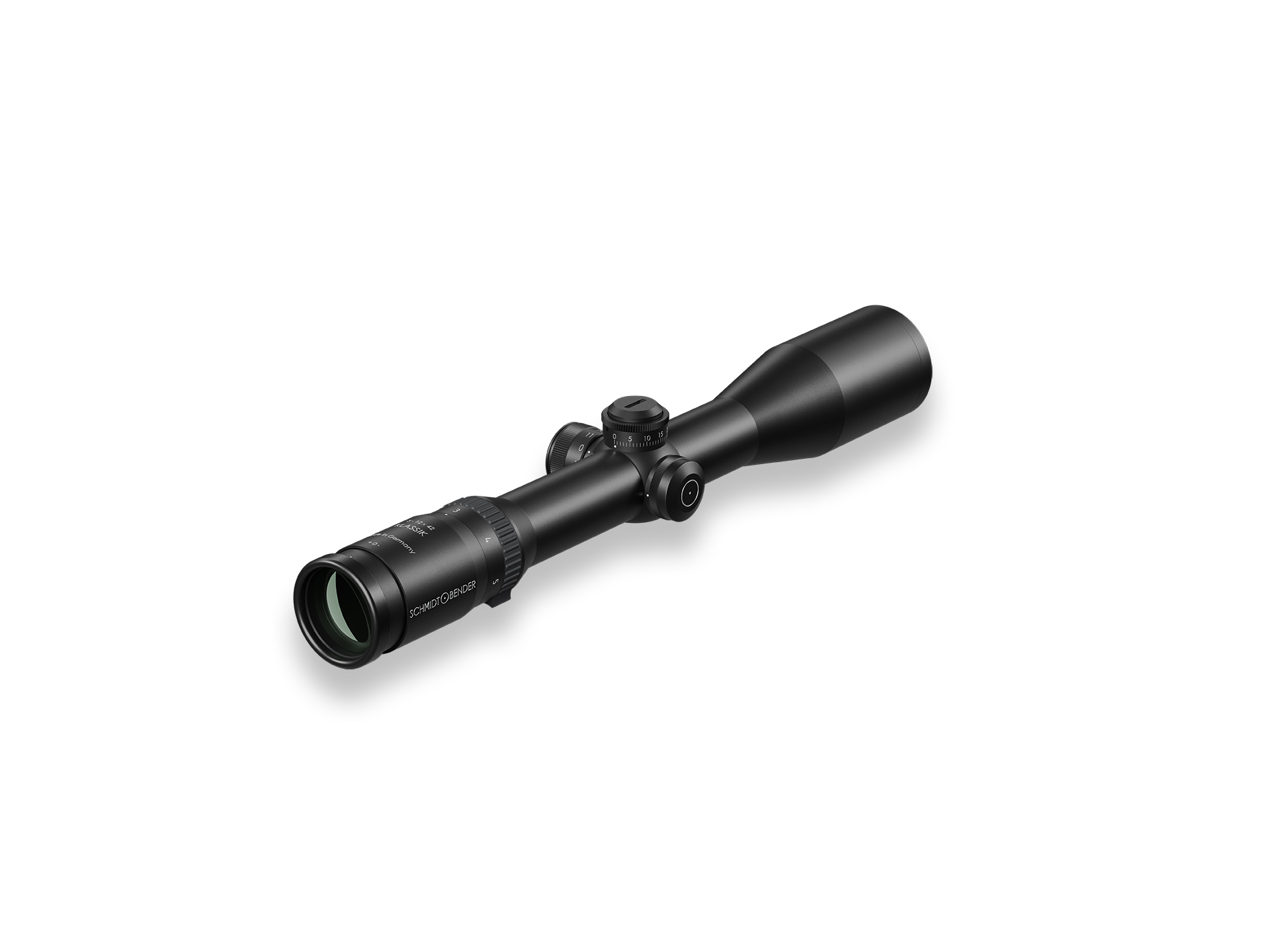

3-12x42 Klassik LM P3L 1cm cw ASV / Klassik CT
Article number:
645-811-882-40-05A02
€1,520.00*
The compact 42 mm objective gives the 3-12x42 Klassik an utmost elegant design which fits perfectly to classic looking rifles. The signature lean design allows the riflescope to be mounted at a rather lower height which improves the practicality of the whole rifle system. This and the very reliable and rugged construction makes it also perfect for hunting abroad.
Technical Data
| Length (mm | in) | 346 | 13.622 |
| Main tube diameter (mm | in) | 30 | 1.18 |
| Weight (g | oz) | 600–620 | 21.16–1.87 |
| Magnification | 3–12 |
| Internal objective diameter (mm | in) | 42 | 1.654 |
| Outer diameter objective (mm | in) | 50 | 1.969 |
| Outer diameter ocular (mm | in) | 43.1 | 1.697 |
| Exit pupil diameter (mm | in) | 14.0–3.5 | 0.55–0.14 |
| Field‑of‑view (m/100 m) | (ft/100 yd)* | 11.1–3.4 | 33.3–10.2 |
| Parallax adjustment (m | yd) | 100 | 109.36 |
Login
Data & Downloads
-
Focal Plane 1. FP
-
Transmission (%) 90
-
Diopter adjustment (dpt) -3 to +2
-
Magnification 3-12
-
illuminated reticle yes
-
Parallax adjustment (options) no
-

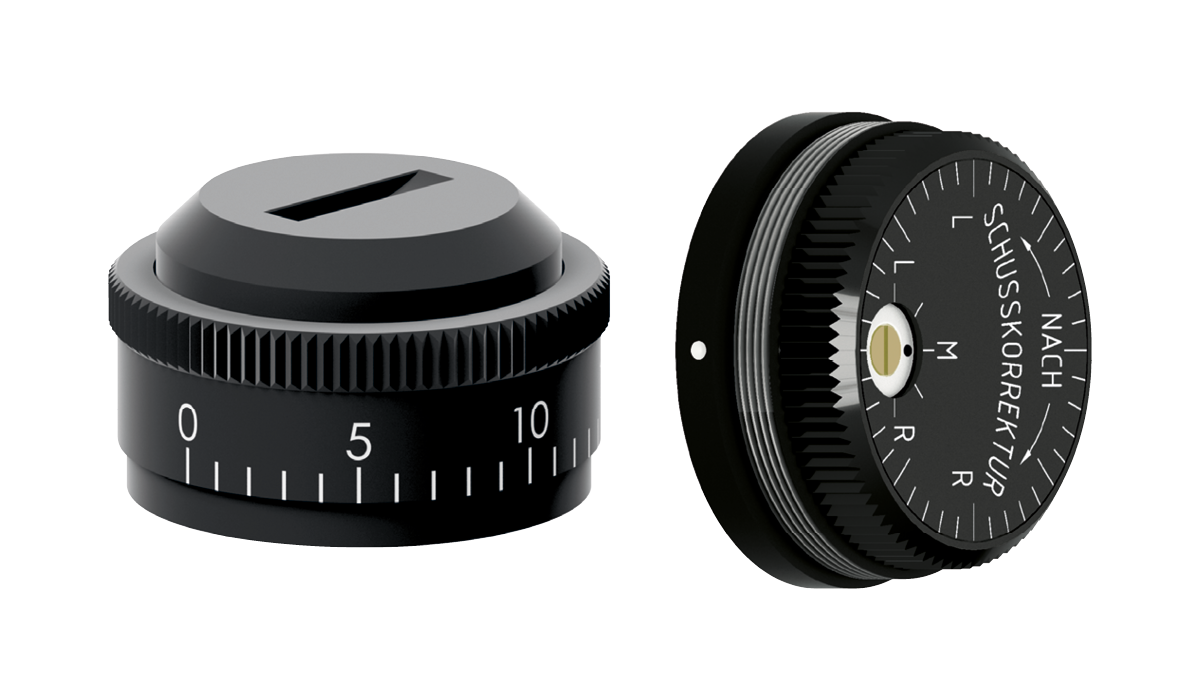

Turrets (Elevation/Windage) ASV / Klassik CT Adjustment range windage (internal) 108 cm/100 m, Adjustment range elevation 48 cm/100 m, Adjustment range elevation (internal) 110 cm/100 m, Adjustment range windage +- 54 cm/ 100 m, Click value 0.5 cm/100 m
-
Length (mm/in) 346/13.62
-
Turret Rotation clockwise
-
Twilight factor 11,2-22,4
-
Eye relief distance (mm)/(in) 90/3.54
-
Field-of-view (°) 6.4-1.9
-
Turrets Configurations ASV / Klassik CT
-
Reticle P3L
-
Mounting System Ring mount
-
Objective diameter (mm/in) 42/1.65
-
Weight (g) 620/21.87
-
Field-of-view (m/100 m)/(ft/100 yd) 11.1-3.4/33.3-10.2
-
Exit pupil diameter (mm/in) 14,0-3,5/0.55-0.14
-
Color black
-
Main tube diameter mm 30 mm
-
Illumination 11
